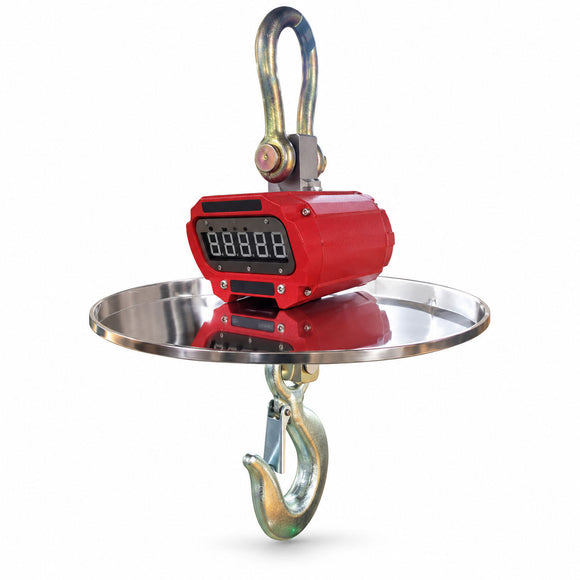

NZS High-Temperature Electronic Crane Scale

An electronic crane scale designed for suspended weighing in high-temperature environments. It features a stainless-steel heat shield, a dual-color LED display and capacities from 1 to 10 metric tons.

Technical Specifications

Accuracy Class	Class III, compliant with GB/T 11883-2002
Operating Time per Charge	Approximately 60 hours
Safe Overload	150% of full-scale capacity
Ultimate Overload	300% of full-scale capacity
High-Temperature Operation	Maintain a distance greater than 1.8 m at 1400°C and greater than 2.0 m at 1600°C
Relative Humidity	≤90% RH
Display	1.2-inch LED digital display
Stabilization Time	Less than 5 seconds
Remote-Control Range	10–15 m

Models and Parameters

Dimensions

Dimensional drawing showing measurements A, B, C, D, E and F.

Capacity	A	B	C	D	E	F
1 t	400 mm	70 mm	32 mm	210 mm	120 mm	495 mm
2 t	430 mm	70 mm	36 mm	210 mm	120 mm	495 mm
3 t	580 mm	143 mm	49 mm	210 mm	120 mm	495 mm
5 t	650 mm	130 mm	53 mm	210 mm	120 mm	495 mm
10 t	690 mm	123 mm	62 mm	210 mm	120 mm	495 mm

High-Temperature Operating Distance

Keep the scale more than 1.8 m from a 1400°C heat source and more than 2.0 m from a 1600°C heat source.

Optional Accessories

Handheld Printer

Desktop Printing Indicator

Large Remote Display

Handheld Display

Bluetooth Module

Optional accessories may vary according to the selected configuration.
