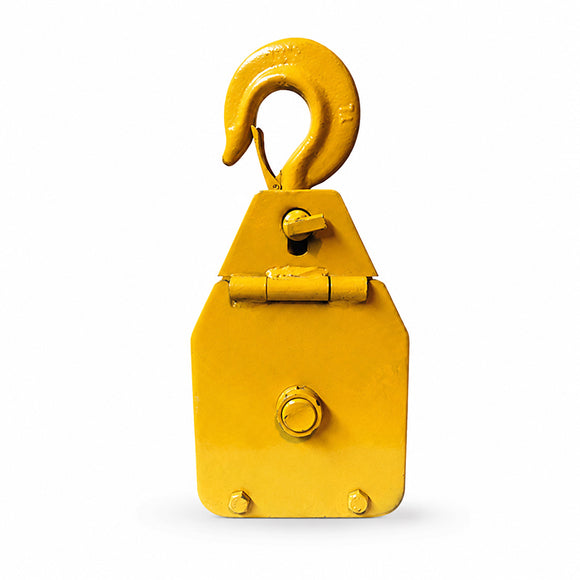

Mining Snatch Block
Product Overview
The Mining Snatch Block is designed for wire-rope handling in confined underground working areas. Its open-side construction allows the wire rope to be installed quickly, while the compact body makes the block easier to move and position underground.
Product Features
- Open-side design allows quick and convenient wire-rope installation.
- A wire-rope retention device inside the side plate helps prevent the rope from coming out during underground operations.
- More compact than standard lifting blocks for easier movement and positioning in underground working areas.
Technical Specifications
| Model |
Working Load Limit (t) |
Wire Rope Diameter (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
L (mm) |
|---|---|---|---|---|---|---|---|
| SL-KY01-01 | 3.2 | 13–15 | 170 | 190 | 36.5 | 90 | 408 |
| SL-KY01-02 | 5 | 16–18 | 180 | 190 | 43 | 95 | 440 |
| SL-KY01-03 | 10 | 18–20 | 260 | 270 | 66 | 128 | 690 |
