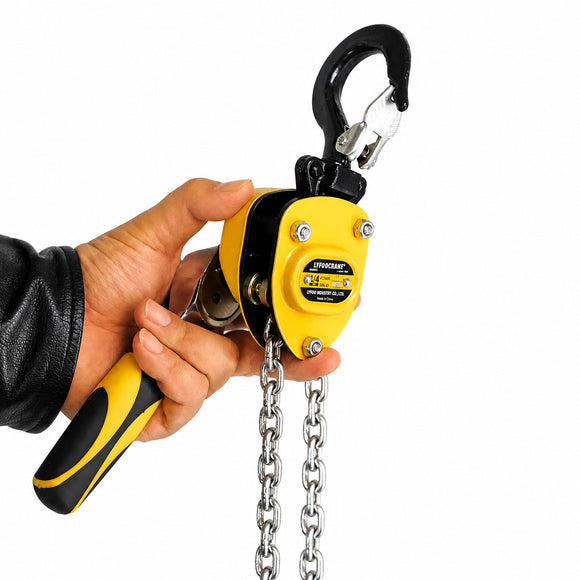

Mini Lever Chain Hoist
The Mini Lever Chain Hoist is a compact and lightweight manual lifting tool designed for lifting, pulling, tensioning, and positioning small to medium loads. Its portable design makes it ideal for maintenance work, workshops, construction sites, equipment installation, and applications where working space is limited.
Compact Manual Lifting Solution
Designed for portability and easy handling, this mini lever hoist provides controlled lifting and pulling without the need for electrical power. Its compact body makes it convenient to carry and suitable for jobs where a conventional full-size lever hoist may be difficult to use.
Available in capacities from 250 kg to 1,500 kg, the series provides a practical solution for light industrial lifting, equipment positioning, repair work, load tensioning, and field maintenance.
Key Features
- Compact and lightweight design for easy carrying and storage
- Suitable for lifting, pulling, tensioning, and load positioning
- Manual operation requires no electrical power supply
- Low hand pull for convenient and controlled operation
- High-strength load chain for reliable lifting performance
- Compact construction for use in confined working areas
- Available in 0.25T, 0.5T, 0.75T, and 1.5T capacities
- Standard lifting height of 1.5 meters
Technical Specifications
| Specification | HSH-L 0.25 | HSH-L 0.5 | HSH-L 0.75 | HSH-L 1.5 |
|---|---|---|---|---|
| Rated Load (T) | 0.25 | 0.5 | 0.75 | 1.5 |
| Standard Lifting Height (m) | 1.5 | 1.5 | 1.5 | 1.5 |
| Test Load (T) | 0.375 | 0.75 | 1.125 | 2.25 |
| Hand Pull at Rated Load (N) | 260 | 260 | 220 | 240 |
| Load Chain Size (mm) | 4 × 12 | 4 × 12 | 5 × 15 | 7.1 × 21 |
| Number of Chain Falls | 1 | 1 | 1 | 1 |
| Net Weight (kg) | 2.3 | 2.8 | 5.5 | 9.5 |
| Additional Weight per Meter of Chain (kg) | 0.346 | 0.346 | 0.54 | 1.1 |
| Packing Size (cm) | 25 × 13 × 11 | 25 × 13 × 11 | 37 × 14 × 10 | 39 × 16 × 12 |
| Dimensions (mm) | ||||
| Dimension a | 62 | 70 | 92 | 112 |
| Dimension b | 158 | 194 | 230 | 234 |
| Dimension c | 156 | 156 | 232 | 271 |
| Dimension d | 30 | 35 | 38 | 45 |
| Dimension e | 84 | 105 | 136 | 148 |
| Dimension f | 240 | 300 | 350 | 355 |
| Dimension g | 96 | 116 | 128 | 160 |
| Dimension h | 77 | 79 | 84 | 92 |
Standard lifting height is 1.5 m. Other lifting heights may be supplied according to order requirements. Dimensions a–h correspond to the product dimension drawing.
