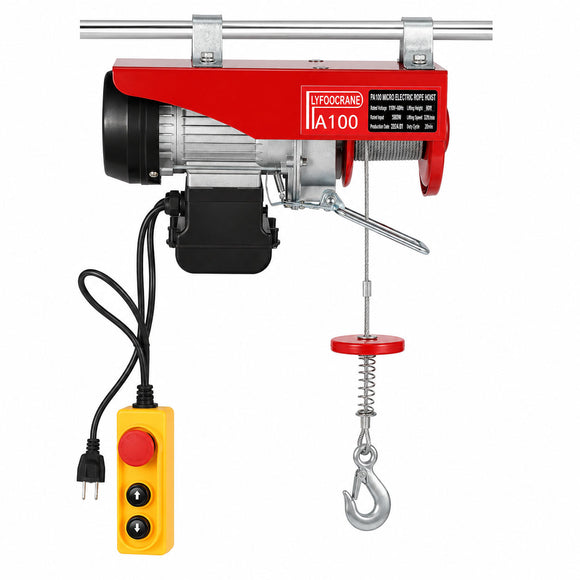

PA Series Mini Electric Wire Rope Hoist
The PA Series Mini Electric Wire Rope Hoist is a compact lifting solution designed for light-duty material handling in workshops, garages, warehouses, production areas, and other locations where a small electric hoist is required. Its compact size and single-phase power supply make installation and operation straightforward.
Compact Electric Lifting Solution
The PA Series mini electric hoist is designed for lifting small loads in areas where space is limited. It can be installed on suitable beams, brackets, small cranes, or lifting frames to provide convenient vertical lifting for general workshop and maintenance applications.
Each model can operate with either a single wire rope or a double-line configuration using the supplied pulley hook. The double-line arrangement increases lifting capacity while reducing lifting height and speed.
Key Features
- Compact and lightweight design for light-duty lifting
- Single-phase 220V power supply
- Single-line and double-line lifting configurations
- Emergency stop switch for added operating safety
- Upper limit switch helps prevent excessive lifting
- Built-in thermal protection for the electric motor
- IP54 protection rating
- Suitable for workshops, garages, warehouses, assembly areas, and maintenance work
- Available in maximum double-line capacities from 200 kg to 1,000 kg
Technical Specifications
| Specification | PA200 | PA300 | PA400 | PA500 | PA600 | PA800 | PA1000 |
|---|---|---|---|---|---|---|---|
| Rated Load – Single / Double Line (kg) | 100 / 200 | 150 / 300 | 200 / 400 | 250 / 500 | 300 / 600 | 400 / 800 | 500 / 1000 |
| Lifting Height – Single / Double Line (m) | 12 / 6 | 12 / 6 | 12 / 6 | 12 / 6 | 12 / 6 | 12 / 6 | 12 / 6 |
| Lifting Speed – Single / Double Line (m/min) | 10 / 5 | 10 / 5 | 10 / 5 | 10 / 5 | 10 / 5 | 10 / 5 | 8 / 4 |
| Rated Input Power (W) | 510 | 600 | 980 | 1020 | 1200 | 1300 | 1600 |
| Rated Voltage (V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Rated Frequency (Hz) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Net Weight (kg) | 11 | 11.5 | 16 | 16 | 17 | 18.5 | 31 |
| Capacitor (μF) | 16 | 20 | 30 | 35 | 40 | 45 | 70 |
| Wire Rope Diameter (mm) | 3 | 3 | 4 | 4 | 4.5 | 5 | 6 |
Single-line operation provides greater lifting height and speed, while double-line operation increases lifting capacity. Specifications may be updated according to product improvements.
