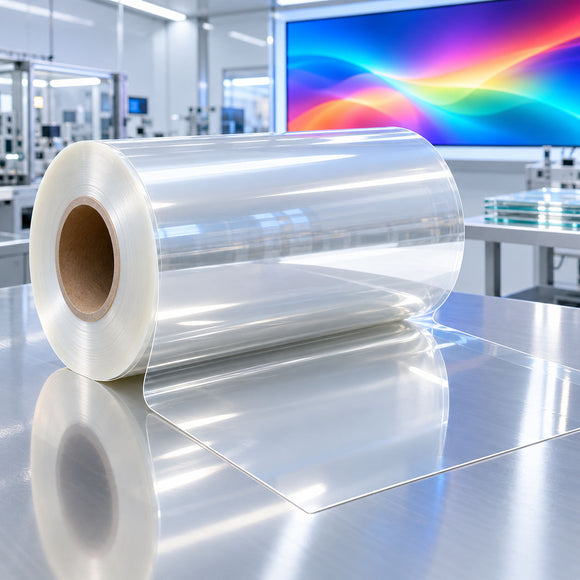

MIB-PT12C Transparent Retort Barrier Film
A 12 μm transparent SiOx-coated barrier film designed for heat-resistant food and pharmaceutical packaging laminates.
Product Features
- Transparent, non-metallic high-barrier construction
- Strong water-vapor and oxygen barrier
- Good aroma retention
- Good flex and weather resistance
- Compatible with metal detection, RFID and microwave use
- Good printability and lamination processing
Applications
Retort FoodPackaging requiring high-temperature resistance.
Meat & Pet FoodHigh-barrier protein packaging.
SaucesJam and salad-dressing packs.
PharmaceuticalsSelected transparent pharmaceutical laminates.
Technical Specifications
| Item | Target | Typical Test Value |
|---|---|---|
| Thickness | 12 ± 1 μm | 12 μm |
| Breaking elongation MD / TD | <200% / <200% | 96% / 81% |
| WVTR | <1 g/m²·day | 0.8 g/m²·day |
| OTR | <0.5 cc/m²·day | 0.3 cc/m²·day |
| Optical transmittance | ≥89% | 90.5% |
| Haze | <3% | 2.96% |
| Heat resistance | 125°C, 45 min | Pass |
Specifications are reference values from the supplied product document. Confirm the final specification and processing conditions before ordering or production use.
