MH Single Girder Gantry Crane

inquiry Tips

To receive a fast and accurate quotation, please provide the following basic technical information:

  • Lifting capacity
  • Crane span (rail center to rail center)
  • Overhang outside the rail
  • Lifting height
  • Local power source (v, hz,3p)
  • Whether crane rails are required, and their length
  • Whether a busbar system is required, and its length

Based on the information provided above, we will prepare a suitable solution for your project.

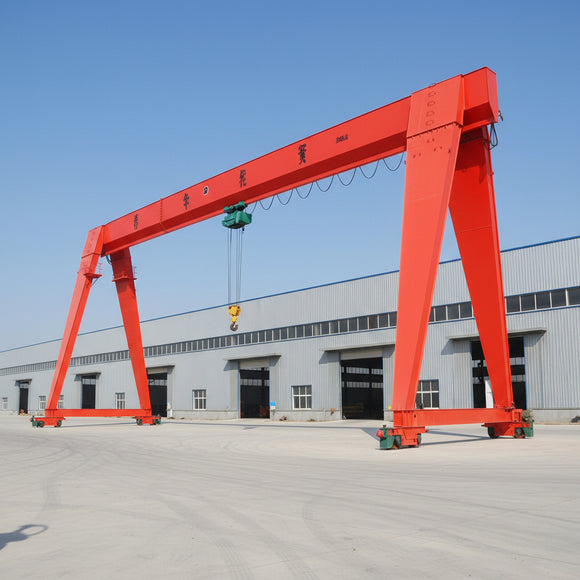

MH Single Girder Gantry Crane

MH Single Girder Gantry Crane

MH Single Girder Gantry Crane

Built for demanding industrial environments, the MH single girder gantry crane pairs a proven CD1/MD1 wire rope hoist with a robust rail-travelling frame — delivering reliable, medium-duty lifting wherever you need it, indoors or out.

Available in lifting capacities from 3 to 32 tons and spans from 12 to 35 meters (custom spans available on request). Rated for operating temperatures from −20°C to +40°C, making it suitable for year-round outdoor operation.

Key Applications

Ideal for open yards, warehouses, and fabrication facilities that require efficient loading, unloading, and material positioning. Operators can choose from pendant push-button, cabin, or wireless remote control — or any combination that suits your workflow.

No overhead runway? No problem. The MH gantry crane is a self-supporting solution that brings full lifting capability to facilities without existing structural support.

Engineered for Indoor Facilities

Not every facility is built with an overhead runway in mind — and that’s exactly where the MH indoor gantry crane excels. With specially engineered end carriages, it maximizes your usable floor area while keeping the footprint compact and the workflow uninterrupted.

Whether you’re working in a legacy building with non-standard column spacing or a modern facility with open-plan layouts, the MH crane can be fully customized to fit your structural constraints and operational requirements.

Cable Reel System

Cable Reel System

Features of Gantry Crane

What Sets It Apart

  • ▲  Versatile design — performs equally well indoors and outdoors.
  • ▲  Choice of box-type or truss-type main girder structure.
  • ▲  Compatible with CD/MD electric wire rope hoists or chain hoists.
  • ▲  Flexible power supply via cable reel system or conductor rail (bus bar).
  • ▲  Multiple control options: pendant, wireless remote, or operator cabin — individually or combined.
  • ▲  Fully engineered to your specifications — capacity, span, height, and environment.
