The HTG and HTP Series combine a manual chain hoist with a compact trolley to maximize lifting height where overhead clearance is limited. With capacities from 500 kg to 20,000 kg, they are suitable for workshops, production lines, warehouses, equipment installation, and maintenance operations.

Geared Travel

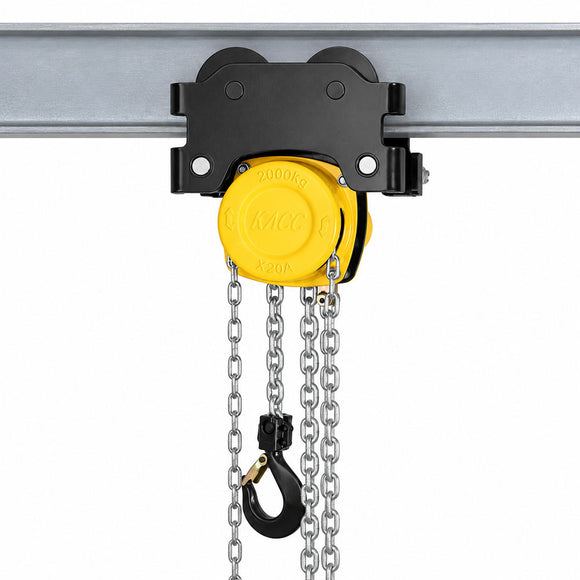

HTG Low Headroom Geared Trolley Hoist

The HTG model uses a hand-chain-driven trolley for controlled horizontal travel. It is a practical solution when operators need accurate load positioning along an I-beam.

  • Compact configuration reduces lost headroom and increases usable lifting height.
  • Models rated up to 3,000 kg use a single load-chain arrangement.
  • Adjustable trolley assembly accommodates different I-beam flange widths.
  • For models up to 5 t, configurations are available for beams up to 180 mm or 300 mm wide.
  • Contoured trolley wheels provide stable rail contact.
  • Sealed ball bearings, anti-tilt features, and drop-prevention devices support reliable operation.
Push Travel

HTP Low Headroom Push Trolley Hoist

The HTP model travels by manually pushing the suspended load. Its simple, compact construction is ideal for short travel distances and applications that do not require a geared trolley drive.

  • Operating temperature range: -40°C to +60°C.
  • Suitable for environments below 100% relative humidity; do not operate in water.
  • Standard construction does not use fire-resistant or other special-purpose materials.
  • Overloading is strictly prohibited.
  • Available in capacities from 500 kg to 10,000 kg.
Maximum Lifting HeightThe low-profile trolley and hoist assembly preserves more vertical working space below the beam.
Adjustable Beam FitThe trolley width can be configured for a range of I-beam flange widths shown in the tables.
Two Travel OptionsChoose geared hand-chain travel for greater control or push travel for simple short-distance movement.

HTG Geared Trolley Hoist Specifications

Models: HTG-005 through HTG-200 | Standard lift: 3 m

Specification HTG-005 HTG-010 HTG-020 HTG-030 HTG-050 HTG-100 HTG-200
Rated Capacity 500 kg 1,000 kg 2,000 kg 3,000 kg 5,000 kg 10,000 kg 20,000 kg
Standard Lift (m) 3 3 3 3 3 3 3
Load Chain Falls 1 1 1 1 2 3 8
Hand Pull at Full Load (N) 240 305 360 370 370 400 380
Proof Load (kg) 750 1,500 3,000 4,500 7,500 15,000 30,000
Load Chain Size (mm) 5 × 15 6 × 18 8 × 24 10 × 30 10 × 30 10 × 30 10 × 30
Hand Chain Size (mm) 5 × 25 5 × 25 5 × 25 5 × 25 5 × 25 5 × 25 5 × 25
Extra Weight per Additional Meter (kg/m) 0.541 0.77 1.36 2.2 4.4 6.6 17.6
Net Weight (kg) 14.8 23.5 43.7 58 84 140 320
Package Size (cm) 30 × 24 × 25 35 × 29 × 30 35 × 33 × 34 42 × 42 × 40 50 × 47 × 47 50 × 47 × 53 60 × 51 × 90
Minimum Headroom Hmin (mm) 250 259 376 447 595 806 976
I-Beam Flange Width (mm) 50-203 74-203 85-203 100-203 114-203 124-203 161-203
Minimum Curve Radius (m) 0.85 1 1.1 1.3 1.4 3 3

HTG Dimensions

Dimension (mm) HTG-005 HTG-010 HTG-020 HTG-030 HTG-050 HTG-100 HTG-200
A 210 240 280 340 420 452 542
B 312 382 481 588 753 988 1,060
C 208 312 329 351 368 387 446
D 190 203 203 203 205 203 203
E 24 26 35 37 40 41 54
F 22 30 34 41 47 61 105
G 35 44 49 60 68 91 125

HTP Push Trolley Hoist Specifications

Models: HTP-005 through HTP-100 | Standard lift: 3 m

Specification HTP-005 HTP-010 HTP-020 HTP-030 HTP-050 HTP-100
Rated Capacity 500 kg 1,000 kg 2,000 kg 3,000 kg 5,000 kg 10,000 kg
Standard Lift (m) 3 3 3 3 3 3
Load Chain Falls 1 1 1 1 2 3
Hand Pull at Full Load (N) 240 305 360 370 370 400
Proof Load (kg) 750 1,500 3,000 4,500 7,500 15,000
Load Chain Size (mm) 5 × 15 6 × 18 8 × 24 10 × 30 10 × 30 10 × 30
Hand Chain Size (mm) 5 × 25 5 × 25 5 × 25 5 × 25 5 × 25 5 × 25
Net Weight (kg) 13.5 22 42 56 82 140
Package Size (cm) 30 × 24 × 25 35 × 29 × 30 35 × 33 × 34 42 × 42 × 40 50 × 47 × 47 50 × 47 × 53
Extra Weight per Additional Meter (kg/m) 0.541 0.77 1.36 2.2 4.4 6.6
Minimum Headroom Hmin (mm) 250 259 376 447 595 806
I-Beam Flange Width (mm) 50-203 74-203 85-203 100-203 114-203 124-203
Minimum Curve Radius (m) 0.85 1 1.1 1.3 1.4 3

HTP Dimensions

Dimension (mm) HTP-005 HTP-010 HTP-020 HTP-030 HTP-050 HTP-100
A 210 240 280 340 420 452
B 312 382 481 588 753 988
C 255 259 284 302 318 338
D 190 203 203 203 205 203
E 24 26 35 37 40 41
F 22 30 34 41 47 61
G 35 44 49 60 68 91
Selection note: Confirm rated load, beam flange width, minimum headroom, curve radius, lift height, and operating environment before ordering. Specifications may be updated as the product is improved.

Choose the Right Low Headroom Hoist

Send LYFOOCRANE your required capacity, lift height, beam width, beam profile, and available headroom. We will help identify the appropriate HTG or HTP configuration for your application.
