LYFOOCRANE MULTI-MEDIA REELING SYSTEMS

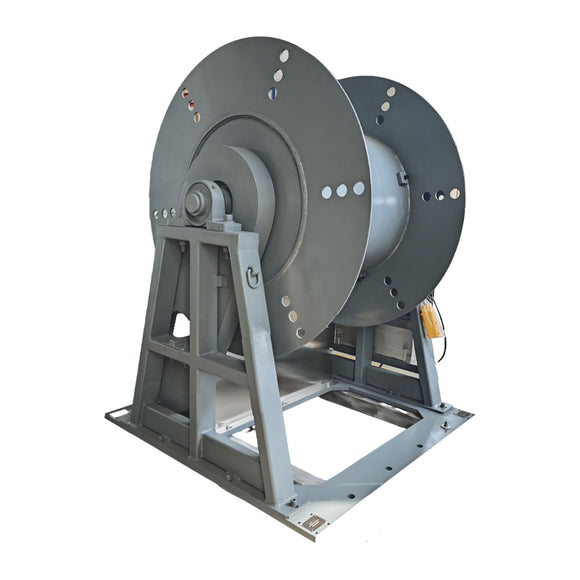

Integrated Hose, Cable and Wire-Rope Reeling System
A coordinated four-line reeling package combining two hoses, one electrical cable and one load-bearing wire rope in a compact machine.
Engineered for the Application
A coordinated four-line reeling package combining two hoses, one electrical cable and one load-bearing wire rope in a compact machine. Final drum geometry, drive, controls and protection are configured around the actual cable, rope or hose system.
Two hoses, one cable and one wire rope.
Electrical plus pneumatic or hydraulic transfer.
Coordinates lines with different winding radii.
Separate guided paths for each medium.
Reference Specifications
| Reference Load | Wire Rope | Motor | Small Drum Speed | Large Drum Speed | Drum Speed | Dimensions |
|---|---|---|---|---|---|---|
| 80 kg | 5 mm | 0.75 kW | 7.3 m/min | 7.65 m/min | 15 rpm | 1,280 × 548 × 692 mm |
Typical Applications
Drilling rigs · mining and tunneling · shore-power equipment · automated gantries · mobile machinery
Engineering Note
Differential-speed control reduces unwanted hose and cable tension but does not guarantee zero tension. Each line needs defined payout geometry, minimum bend radius, allowable pull, travel limits and monitored failure behavior. The broader 80–8,000 kg range is a custom family, not one machine rating.
Final selection must also define duty cycle, ambient conditions, guarding, emergency stopping, anchorage and applicable local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Project Configuration
Send the line type and diameter, working length, required pull, speed, duty cycle, power supply, control interface, environment and installation drawing.
