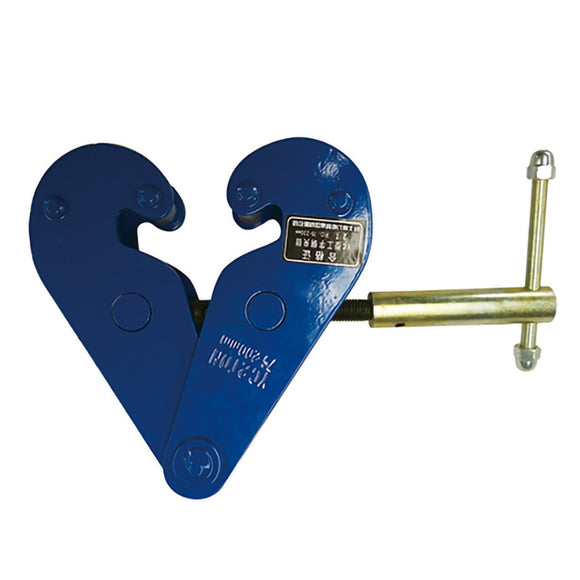

YC I-Beam Clamp
Technical Specifications
| Model | WLL (t) |
Beam Width (mm) |
Weight (kg) |
|---|---|---|---|
| YC1 | 1 | 75–220 | 4.4 |
| YC2 | 2 | 75–220 | 5.5 |
| YC3 | 3 | 80–320 | 11.2 |
| YC5 | 5 | 80–320 | 13.5 |
WLL = Working Load Limit
Product Overview
The YC I-Beam Clamp provides a secure suspension point for chain hoists, lever hoists and other lifting equipment. It attaches directly to the lower flange of an I-beam, allowing lifting equipment to be installed without drilling or permanently modifying the supporting beam.
Manufactured from high-quality low-carbon alloy steel, the clamp is designed for demanding industrial lifting applications. Models are available with working load limits from 1 to 5 metric tons and adjustable jaws to suit different beam flange widths.
Each clamp is proof tested individually at twice its maximum working load limit to verify its load-bearing performance.
Installation
Turn the threaded spindle counterclockwise to open the jaws. Position the clamp over the lower flange of the I-beam, then rotate the spindle clockwise until both jaws are securely tightened against the beam.
