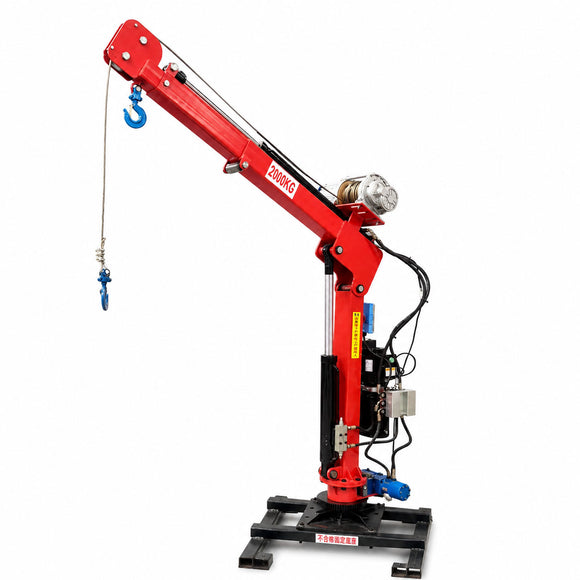

Compact Hydraulic Truck-Mounted Crane

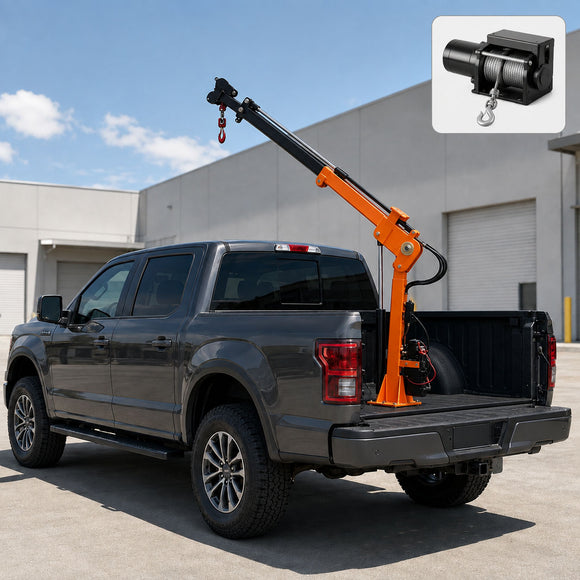

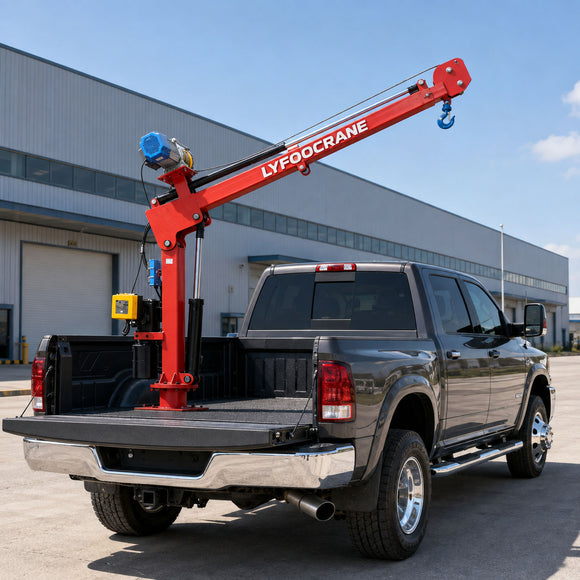

This compact hydraulic crane provides a practical lifting solution for pickup trucks, service vehicles, utility trucks and light commercial fleets. Its telescopic boom helps operators load and unload machinery, tools, building materials and other heavy items where a full-size mobile crane would be unnecessary or difficult to use.
Available in 1-ton and 2-ton configurations, the crane combines a space-saving truck-bed installation with selectable boom reach and lifting capacity. The powered winch and hydraulic lifting system support controlled handling, while 12V, 24V and 220V power options allow the unit to be matched to different vehicles and operating environments.

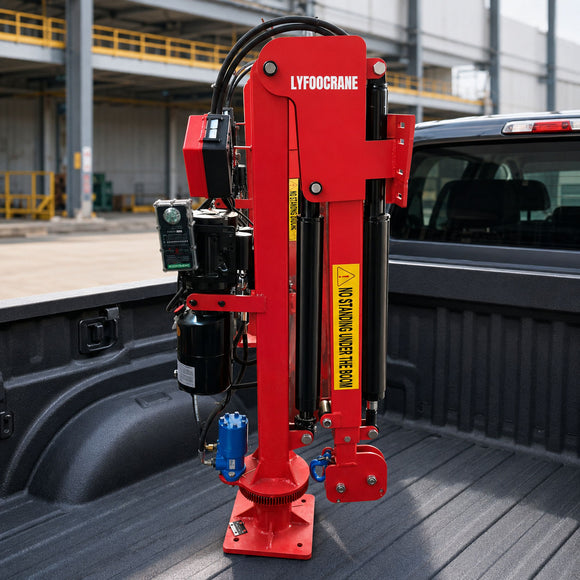

Compact InstallationDesigned for mounting in pickup beds and light-duty commercial vehicles.
Telescopic ReachThree boom positions provide a practical balance between reach and capacity.
Multiple Power OptionsAvailable for 12V DC, 24V DC or 220V AC power supplies.
1-Ton & 2-Ton Model Comparison
| Specification | 1-Ton Model | 2-Ton Model |
|---|---|---|
| Column | 100 × 100 mm; 6 mm wall | 120 × 120 mm; 8 mm wall |
| Boom Section 1 | 100 × 100 mm; 6 mm wall | 120 × 120 mm; 8 mm wall |
| Boom Section 2 | 85 × 85 mm; 6 mm wall | 100 × 100 mm; 6 mm wall |
| Boom Section 3 | 63 × 63 mm; 6 mm wall | 85 × 85 mm; 6 mm wall |
| Steel Construction | Seamless steel tube | Seamless Steel tube |
| Section 1 Performance | 1.45 m boom / 2.5 m lift height / 1,000 kg capacity | 1.45 m boom / 2.4 m lift height / 2,000 kg capacity |
| Section 2 Performance | 2.25 m boom / 3.0 m lift height / 500 kg capacity | 2.25 m boom / 2.9 m lift height / 1,000 kg capacity |
| Section 3 Performance | 3.00 m boom / 3.5 m lift height / 200 kg capacity | 3.00 m boom / 3.4 m lift height / 500 kg capacity |
| Power Options | 12V DC / 24V DC / 220V AC | 12V DC / 24V DC / 220V AC |
Important: Rated capacity decreases as the telescopic boom is extended. Confirm the vehicle structure, mounting reinforcement, working radius and installation requirements before use. Final specifications may vary according to the selected configuration.
