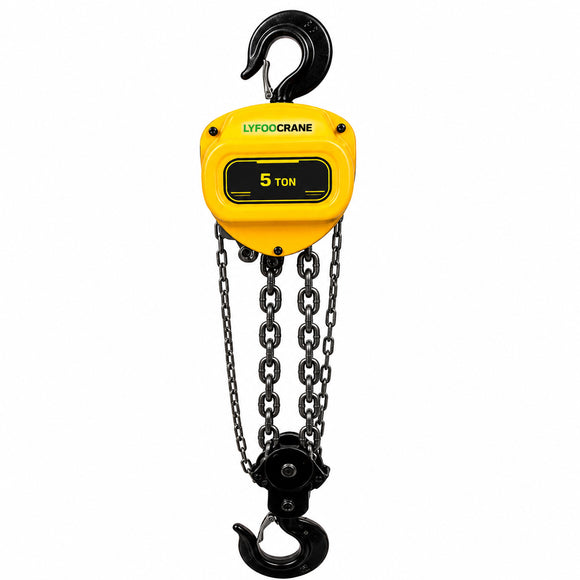

HS-C Manual Chain Hoist
The HS-C Manual Chain Hoist is a compact and dependable hand-operated lifting solution designed for workshops, warehouses, construction sites, machinery installation and general industrial maintenance. Requiring no electrical power, it is particularly suitable for temporary lifting work, outdoor operations and locations where a power supply is unavailable.
Capacity and Operating Specifications
| Model | Rated Capacity | Standard Lift | Proof Load | Minimum Headroom | Hand Pull | Load-Chain Falls | Load-Chain Dia. |
|---|---|---|---|---|---|---|---|
| HS-C 0.5 | 0.5 t | 2.5 m | 0.75 t | 255 mm | 221 N | 1 | 6 mm |
| HS-C 1 | 1 t | 2.5 m | 1.5 t | 306 mm | 304 N | 1 | 6 mm |
| HS-C 1.5 | 1.5 t | 2.5 m | 2.25 t | 368 mm | 343 N | 1 | 8 mm |
| HS-C 2 | 2 t | 2.5 m | 3 t | 444 mm | 341 N | 2 | 6 mm |
| HS-C 3 | 3 t | 3 m | 4.5 t | 486 mm | 343 N | 2 | 8 mm |
| HS-C 5 | 5 t | 3 m | 7.5 t | 616 mm | 383 N | 2 | 10 mm |
| HS-C 10 | 10 t | 3 m | 12.5 t | 700 mm | 392 N | 4 | 10 mm |
| HS-C 20 | 20 t | 3 m | 25 t | 1000 mm | 392 N | 8 | 10 mm |
Dimensions
| Model | Rated Capacity | A | B |
|---|---|---|---|
| HS-C 0.5 | 0.5 t | 125 mm | 111 mm |
| HS-C 1 | 1 t | 147 mm | 126 mm |
| HS-C 1.5 | 1.5 t | 183 mm | 141 mm |
| HS-C 2 | 2 t | 147 mm | 126 mm |
| HS-C 3 | 3 t | 183 mm | 141 mm |
| HS-C 5 | 5 t | 215 mm | 163 mm |
| HS-C 10 | 10 t | 360.5 mm | 163 mm |
| HS-C 20 | 20 t | 585 mm | 191 mm |
Terminology: Minimum headroom refers to the shortest distance between the upper and lower hooks. Dimensions A and B correspond to the product dimensional drawing. Longer lifting heights require additional load and hand chain and may increase the total unit weight.
Operating Guidelines
- Always confirm that the rated capacity of the hoist is greater than or equal to the load being lifted.
- Operate the hand chain manually only. Do not use powered equipment or extension devices to pull the hand chain.
- Inspect the hooks, safety latches, load chain, hand chain and operating mechanism before each use.
- Make sure the load chain hangs vertically and is free from twists, knots or crossed links.
- Seat both the suspension hook and load hook correctly. Never apply a load directly to the hook tip.
- Pull the hand chain smoothly and evenly. Stop operation if unusually high resistance or abnormal movement is detected.
- Never allow personnel to stand or work beneath a suspended load.
- Do not use the hoist for lifting, supporting or transporting people.
Typical Applications
The HS-C Manual Chain Hoist is suitable for machinery installation, equipment maintenance, warehouse handling, construction work, workshop lifting and general industrial material handling. It is especially practical where electrical power is unavailable or where a simple portable lifting solution is preferred.
Ordering checklist: Confirm the required lifting capacity, lifting height, available headroom, suspension method, operating environment and applicable local safety requirements before ordering. Custom lifting heights can be supplied according to project requirements.
