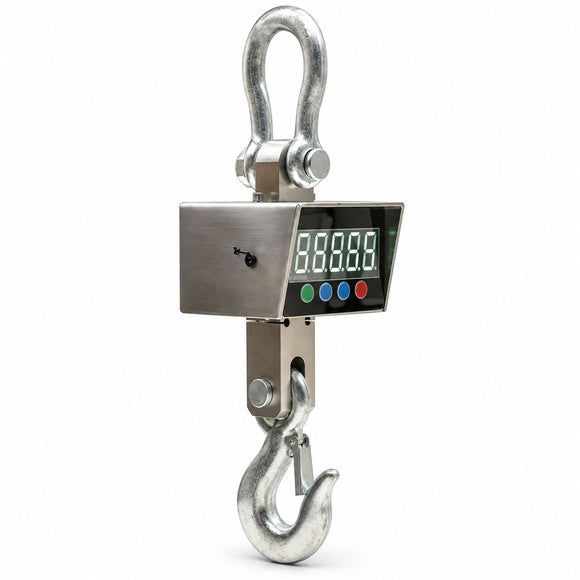

G Series High-Precision Electronic Crane Scale

A high-precision electronic crane scale with a stainless-steel housing, clear dual-color LED display and lifting capacities from 1 to 10 metric tons.

Technical Specifications

Accuracy Class	Class III, compliant with GB/T 11883-2002
Operating Time per Charge	Approximately 60 hours
Safe Overload	150% of full-scale capacity
Ultimate Overload	300% of full-scale capacity
Operating Temperature	-25°C to +50°C
Relative Humidity	≤90% RH
Display	1.8-inch LED display
Stabilization Time	Less than 5 seconds
Remote-Control Range	10–15 m

Models and Parameters

Dimensions

Dimensional drawing showing measurements A, B, C, D and E.

Capacity	A	B	C	D	E
1 t	680 mm	130 mm	49 mm	180 mm	125 mm
2 t	680 mm	130 mm	49 mm	180 mm	125 mm
3 t	680 mm	130 mm	49 mm	180 mm	125 mm
5 t	680 mm	130 mm	49 mm	180 mm	125 mm
10 t	720 mm	123 mm	62 mm	180 mm	125 mm

Optional Accessories

Handheld Printer

Desktop Printing Indicator

Large Remote Display

Handheld Display

Bluetooth Module

Optional accessories may vary according to the selected configuration.
