LYFOOCRANE MANUAL MOORING WINCHES

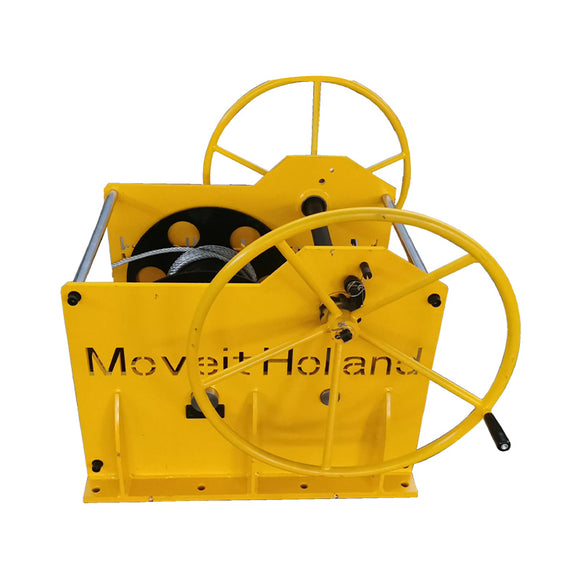

Heavy-Duty Manual Marine Mooring Winch, 2–11 Tonne Reference Models
A deck-mounted two-stage hand winch with dual-side crank inputs, bidirectional load control and large rope capacity for remote marine operations.
Designed Around the Working Duty
A deck-mounted two-stage hand winch with dual-side crank inputs, bidirectional load control and large rope capacity for remote marine operations. Final gearing, drum, braking, controls and protection are configured for the project.
One- or two-operator access.
High mechanical advantage.
Controlled retrieval and payout.
Galvanizing or coating by specification.
Reference Specifications
| Reference Models | Rope Diameters | Rope Capacity | Gear Ratios | Machine Weights |
|---|---|---|---|---|
| 2,000 / 5,000 / 11,000 kg | 12 / 22 / 30 mm | 100 / 100 / 80 m | 18:1 / 18:1 / 30:1 | 117 / 450 / 950 kg |
Typical Applications
Traditional vessels · fishing boats · workboats · remote docks · pontoons · temporary anchoring
Engineering Note
The broad 500 kg–40 tonne range is not supported by detailed data for every model. The claim that one operator can handle 8–12 tonnes has been removed because allowable hand force, drum layer and mechanical efficiency are unspecified. Mooring suitability requires dynamic-load and brake calculations.
Final selection must define line pull by drum layer, rope specification, duty cycle, brake holding load, anchorage, corrosion system, guarding and applicable marine or local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Configuration
Provide the operating purpose, required line pull, rope travel and diameter, speed, duty cycle, power or hydraulic supply, installation drawing and environment.
