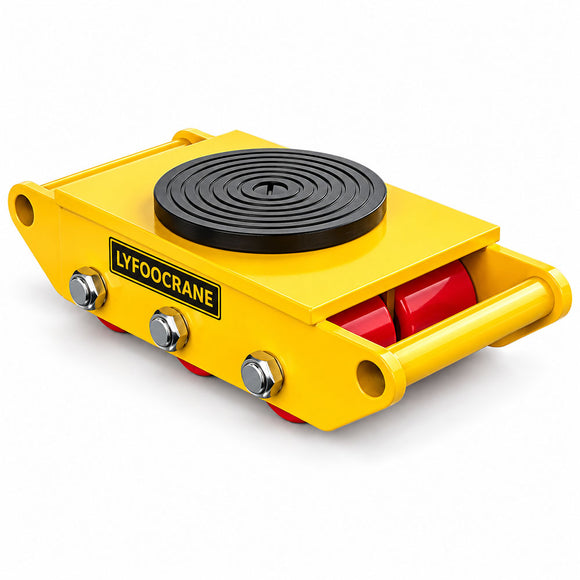

Heavy-Duty Machinery Movers
Heavy-duty, high-capacity machinery movers designed for controlled, straight-line transport of industrial equipment across clean, hard and level floors. Available in 6- to 36-ton maximum load capacities.
Move Heavy Equipment with Less Effort
Built around a reinforced steel frame, these machinery movers support concentrated industrial loads while keeping the equipment close to the floor for improved stability. Durable polyurethane rollers provide smooth travel on concrete and epoxy-coated floors.
Choose the required capacity and roller configuration for machinery installation, maintenance, plant relocation and workshop positioning.
Key Features
High Load Capacity
Eight models cover maximum loads from 6 to 36 metric tons.
Eight models cover maximum loads from 6 to 36 metric tons.
Reinforced Steel Body
Designed for demanding factory, warehouse and maintenance work.
Designed for demanding factory, warehouse and maintenance work.
Polyurethane Rollers
Smooth-running rollers help reduce marking on suitable finished floors.
Smooth-running rollers help reduce marking on suitable finished floors.
Compact Profile
Fits beneath equipment with limited ground clearance and stores easily.
Fits beneath equipment with limited ground clearance and stores easily.
Models and Specifications
| Model | Maximum Load | Recommended Working Load | Number of Rollers | Roller Size (mm) | Dimensions (L × W × H, mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| CRB6 | 6 t | 3 t | 4 | Ø68 × 75 | 300 × 225 × 110/112 | 11.2 |
| CRB8 | 8 t | 4 t | 6 | Ø68 × 75 | 400 × 225 × 110/112 | 16 |
| CRB12 | 12 t | 6 t | 8 | Ø68 × 75 | 500 × 255 × 110/112 | 20.4 |
| CRB15 | 15 t | 7 t | 9 | Ø68 × 75 | 400 × 313 × 110/112 | 22 |
| CRB18 | 18 t | 9 t | 12 | Ø68 × 75 | 500 × 313 × 110/112 | 30 |
| CRB24 | 24 t | 12 t | 16 | Ø68 × 75 | 550 × 380 × 115 | 65 |
| CRB30 | 30 t | 15 t | 20 | Ø68 × 75 | 690 × 380 × 115 | 79 |
| CRB36 | 36 t | 18 t | 25 | Ø68 × 75 | 690 × 462 × 115 | 95 |
Typical Applications
CNC machines, lathes and production equipment
Factory relocation, installation and maintenance
Operating note: These rollers travel primarily in a straight line. Use a compatible steering arm for directional control. Raise the load with suitable lifting equipment, center it on the mover and distribute weight evenly. Use only on clean, hard and level surfaces.
