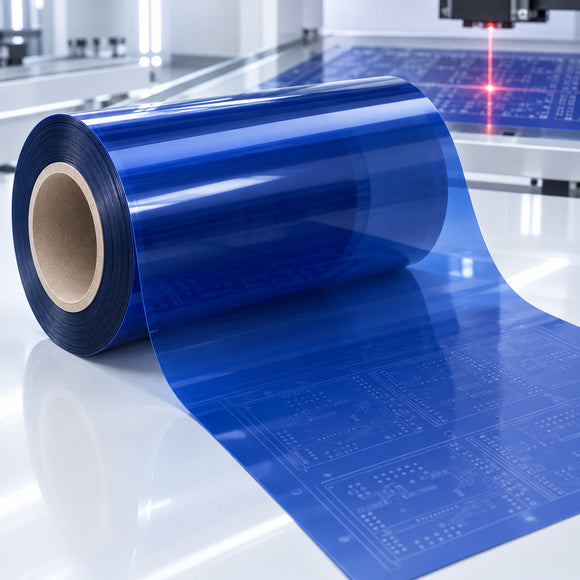

H-211 Electronic Film
A red-sensitive electronic film developed for PCB photoplotting with 630-670 nm helium-neon or red-laser output systems.
Product Features
- High contrast and resolution
- Low fog and high maximum density
- Sharp line and dot reproduction
- Wide exposure and processing latitude
- Designed for fine lines and refined electronic imaging
Applications
PCB PhotoplottingHigh-resolution circuit-board artwork output.
Fine-Line ImagingSupports narrow lines and sharp edges.
Red-Laser SystemsFor compatible 630-670 nm plotters.
Technical Specifications
| Item | Specification |
|---|---|
| Light source | 630-670 nm HeNe or red laser |
| Sheet packaging | 50 sheets per pack; multiple inch sizes |
| Roll length | 36 m |
| Developing conditions | 30°C: 40-55 s; 32°C: 30-45 s; 35°C: 20-30 s |
| Recommended drying | 40-50°C |
| Shelf life | 18 months |
| Standard | HG/T 2172-2003 |
Handling, Processing & Storage
Handle carefully to prevent damage from friction, folding, oil or fingerprints. Store in a cool, dry place away from direct sunlight, radiation and harmful substances.
Specifications are reference values from the supplied product document. Confirm the final specification and processing conditions before ordering or production use.
