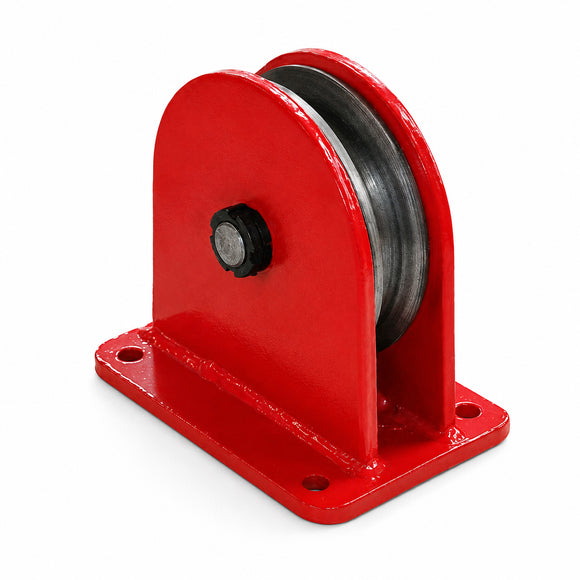

Ground Sheave
Product Overview
The Ground Sheave is used to guide and redirect wire rope during lifting and pulling operations. The series is available in rated capacities from 1 to 20 metric tons, with multiple dimensions and wire-rope diameter ranges to suit different operating requirements.
Dimensional Drawing
Technical Specifications
| Rated Capacity (t) |
A (mm) |
B (mm) |
L (mm) |
H (mm) |
B1 (mm) |
L1 (mm) |
Wire Rope Diameter, d (mm) |
|---|---|---|---|---|---|---|---|
| 1 | 106 | 106 | 150 | 129 | 80 | 110 | 7–11 |
| 2 | 140 | 125 | 186 | 168 | 90 | 138 | 11–14 |
| 3 | 165 | 140 | 225 | 190 | 100 | 175 | 12–15 |
| 5 | 202 | 150 | 245 | 230 | 120 | 185 | 15–18 |
| 8 | 264 | 210 | 360 | 307 | 145 | 240 | 20–23 |
| 10 | 300 | 220 | 400 | 342 | 160 | 290 | 23–25 |
| 16 | 390 | 290 | 530 | 450 | 205 |
