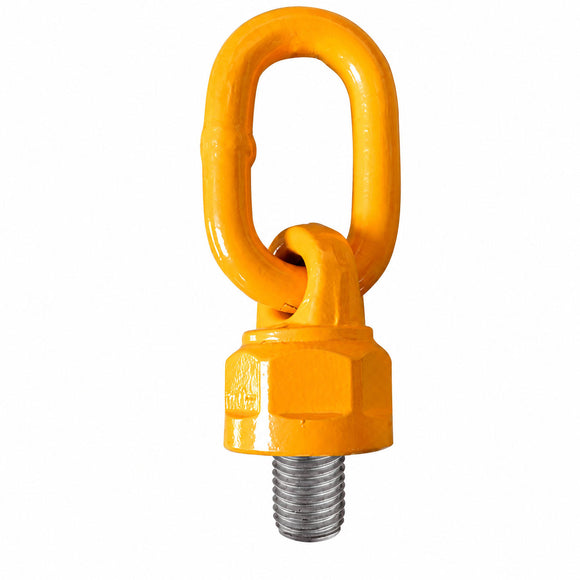

Grade 80 Universal Swivel Hoist Ring

Grade 80 Universal Swivel Hoist Ring

Grade 80 universal swivel hoist ring manufactured from high-strength alloy steel. The lifting ring is designed to rotate and align with the direction of the applied load.

Manufactured from high-strength alloy steel.
Proof tested at 2.5 times the specified Working Load Limit.
Sample units are subjected to destructive breaking-load tests.
Every unit is subjected to 100% magnetic particle inspection.
Finished with a durable powder-coated surface.
Minimum breaking load is four times the specified Working Load Limit.
Item No. WLL at 90°
(t)		 WLL at 0°
(t)		 Thread
D × E		 ØB
(mm)		 ØC
(mm)		 G
(mm)		 T
(mm)		 A
(mm)		 W
(mm)		 Ø
(mm)		 Weight
(kg)
SL-R1021-1 0.3 0.6 M8×13 36 15 51 41 55 30 13 0.41
SL-R1021-2 0.45 0.9 M10×18 36 15 51 41 55 30 13 0.43
SL-R1021-3 0.5 1 M12×18 36 15 51 41 55 30 13 0.44
SL-R1021-4 0.5 1 M12×45 36 15 51 41 55 30 13 0.47
SL-R1021-5 0.5 1 M12×110 36 15 51 41 55 30 13 0.53
SL-R1021-6 1.12 2 M14×20 36 15 51 41 55 30 13 0.45
SL-R1021-7 1.12 2 M16×20 36 15 52 42 55 30 13 0.46
SL-R1021-8 1.12 2 M16×120 36 15 52 42 55 30 13 0.60
SL-R1021-9 2 4 M20×30 49.5 19 68 56 70 35 16 0.96
SL-R1021-10 2 4 M20×120 49.5 19 68 56 70 35 16 1.17
SL-R1021-11 3.15 6.3 M24×30 57 22 78 65.5 85 40 18 1.45
SL-R1021-12 3.15 6.3 M24×90 57 22 78 65.5 85 40 18 1.66
SL-R1021-13 3.15 6.3 M24×120 57 22 78 65.5 85 40 18 1.74
SL-R1021-14 3.15 6.3 M27×35 57 22 78 65.5 85 40 18 1.47
SL-R1021-15 5.3 10.6 M30×35 66 23.5 96.5 80.5 85 40 20 2.17
SL-R1021-16 5.3 10.6 M30×38 66 23.5 96.5 80.5 85 40 20 2.18
SL-R1021-17 5.3 10.6 M30×120 66 23.5 96.5 80.5 85 40 20 2.65
SL-R1021-18 8 11.8 M30×35 80 28 112 92 115 50 22 3.35
SL-R1021-19 8 11.8 M30×38 80 28 112 92 115 50 22 3.58
SL-R1021-20 8 11.8 M30×120 80 28 112 92 115 50 22 4.01
SL-R1021-21 8 11.8 M36×50 80 27 109 89.5 115 50 22 4.07
SL-R1021-22 8 11.8 M36×90 80 27 109 89.5 115 40 22 4.17
SL-R1021-23 8 11.8 M36×120 80 27 109 89.5 115 50 22 4.27
SL-R1021-24 8 11.8 M36×400 80 27 109 89.5 115 50 22 6.41
SL-R1021-25 8 11.8 M39×50 80 27 109 89.5 115 50 22 3.51
SL-R1021-26 8 11.8 M39×90 80 27 109 89.5 115 50 22 3.71
SL-R1021-27 10 15 M42×50 80 27 109 89.5 115 50 25 3.62
SL-R1021-28 10 15 M48×50 80 27 109 89.5 115 50 25 4.02
