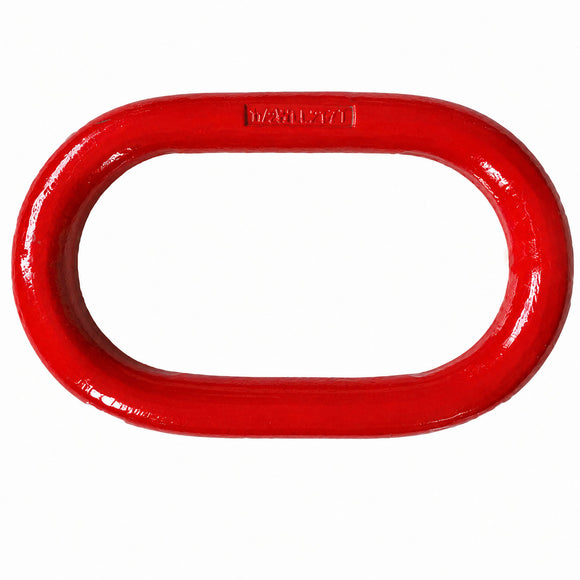

Grade 80 U.S.-Type Master Link
Grade 80 U.S.-type master link designed for chain sling and lifting assemblies. Available with Working Load Limits from 2 to 160 tonnes.
| Item No. | WLL (t) |
Chain Size (in.) |
Ø (mm) |
B (mm) |
C (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|
| SL-R1007-2 | 2 | 1/2 | 14 ±1 | 127 ±5 | 63.5 ±5 | 0.44 |
| SL-R1007-3 | 3 | 5/8 | 16 ±1 | 152 ±6 | 76 ±5 | 0.7 |
| SL-R1007-4.75 | 4.75 | 3/4 | 19 ±1 | 140 ±6 | 70 +5 −0 |
0.92 |
| SL-R1007-6.4 | 6.4 | 7/8 | 22 ±1 | 160 ±5 | 90 ±5 | 1.5 |
| SL-R1007-8 | 8 | 7/8 | 22 +1 −0 |
178 ±5 | 89 +5 −0 |
1.55 |
| SL-R1007-11 | 11 | 1 | 25 ±1 | 178 ±7 | 89 +5 −0 |
2 |
| SL-R1007-16 | 16 | 1-1/4 | 32 ±1 | 220 +7 −0 |
110 +5 −0 |
4 |
| SL-R1007-21.7 | 21.7 | 1-1/2 | 38 ±1 | 270 +4 −5 |
140 ±4 | 7.2 |
| SL-R1007-28.4 | 28.4 | 1-3/4 | 45 +1 −0 |
305 ±5 | 152 ±5 | 11.3 |
| SL-R1007-35 | 35 | 2 | 51 +2 −1 |
350 ±5 | 175 +6 −3 |
16.7 |
| SL-R1007-45 | 45 | 2-1/4 | 57 ±1 | 405 ±10 | 203 ±7 | 23.2 |
| SL-R1007-50 | 50 | 2-1/2 | 63 +1 −2 |
406 ±10 | 203 ±7 | 29.8 |
| SL-R1007-60 | 60 | 2-3/5 | 68 ±1 | 450 ±10 | 250 ±7 | 39.2 |
| SL-R1007-70 | 70 | 2-4/5 | 72 ±1 | 460 ±10 | 250 ±7 | 45 |
| SL-R1007-80 | 80 | 3-1/4 | 80 ±1 | 480 ±10 | 250 ±5 | 58 |
| SL-R1007-100 | 100 | — | 85 ±1 | 480 ±10 | 252 ±5 | 66.5 |
| SL-R1007-120 | 120 | — | 90 ±1 | 490 ±10 | 252 ±5 | 76 |
| SL-R1007-150 | 150 | — | 95 +3 −0 |
505 ±10 | 260 ±5 | 88 |
| SL-R1007-160 | 160 | — | 102 +3 −1 |
505 ±10 | 260 ±5 | 103 |
