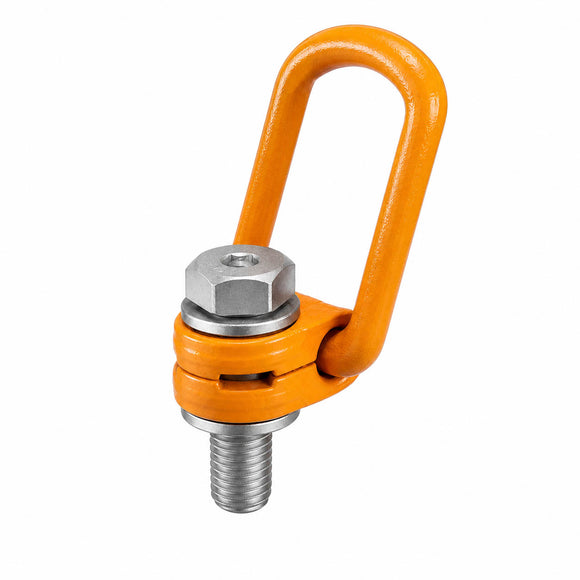

Grade 80 Side-Pull Swivel Hoist Ring

Grade 80 Side-Pull Swivel Hoist Ring

Grade 80 swivel hoist ring designed for lifting applications where the load direction may change. The lifting ring rotates through 360°, while the bail can be positioned from 0° to 90° for side-pull lifting.

The lifting bail and mounting plate are forged from high-strength alloy steel and subjected to a controlled heat-treatment process.
Supplied with a metric Class 12.9 socket-head alloy steel bolt conforming to ISO 4762.
Proof tested at 2.5 times the specified Working Load Limit.
Sample fatigue tested for 20,000 cycles at 1.5 times the Working Load Limit.
Every unit is subjected to 100% magnetic particle inspection.
The lifting bail permits a working angle from 0° to 90° and 360° rotation around the mounting axis.
Item No. WLL
(t)		 Locking Torque
(N·m)		 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 E
(mm)		 F
(mm)		 G
(mm)		 H
(mm)		 M N
(mm)		 SW
(mm)		 Weight
(kg)
SL-R1023-0.3 0.3 30 30 35 55 10 11 85 35 29 M8 6 13 0.2
SL-CT107-0.63 0.63 30 30 35 55 10 16 85 35 29 M10 6 17 0.3
SL-CT107-1 1 100 33 37 57 14 18 98 44 36 M12 8 19 0.5
SL-CT107-1.2 1.2 120 33 35 57 10 21 98 45 36 M14 10 22 0.6
SL-CT107-1.5 1.5 150 33 35 57 10 24 85 46 36 M16 10 24 0.7
SL-CT107-2 2 200 50 54 82 17 26 140 57 44 M18 12 30 1.3
SL-CT107-2.5 2.5 250 50 54 82 17 30 140 57 44 M20 12 30 1.35
SL-CT107-4 4 400 50 54 82 17 36 140 59 44 M24 14 36 1.4
SL-CT107-4 4 400 60 65 99 23 38 170 79 62 M27 17 41 2.85
SL-CT107-5 5 500 60 65 99 23 48 170 81 62 M30 17 46 3.15
SL-CT107-7 7 700 60 65 99 23 54 178 88 65 M36 22 55 3.4
SL-CT107-8 8 800 77 85 124 27 62 225 101 78 M36 22 55 5.8
SL-CT107-10 10 1000 77 85 124 27 72 225 104 78 M42 24 65 6.3
SL-CT107-15 15 1500 96 104 158 36 63 256 112 86 M42 24 65 10.8
SL-CT107-20 20 2000 96 104 158 36 72 259 120 90 M48 27 75 11.6
