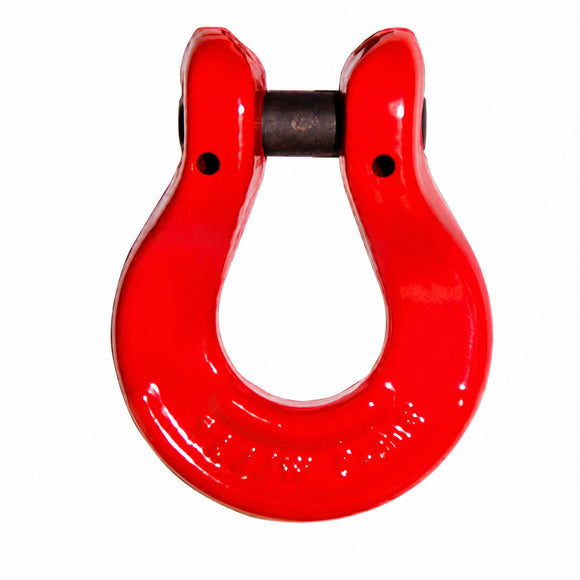

Grade 80 Omega Link
The Grade 80 Omega Link is designed for connecting Grade 80 lifting-chain components in chain sling assemblies. Its compact profile provides a practical and reliable connection for industrial lifting and material-handling applications.
| Item No. | WLL (t) |
Breaking Load (t) |
A (mm) |
B (mm) |
Ø (mm) |
C (mm) |
L (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SL-CT104-6 | 1.12 | 4.48 | 8 | 41 | 20.5 | 25 | 52 | 0.12 |
| SL-CT104-8 | 2 | 8 | 10 | 52 | 23.5 | 35 | 68.5 | 0.22 |
| SL-CT104-10 | 3.15 | 12.6 | 12 | 62 | 31.5 | 40.5 | 81 | 0.35 |
| SL-CT104-12 | 5.3 | 21.2 | 15 | 81 | 41 | 54 | 108 | 0.67 |
| SL-CT104-16 | 8 | 32 | 19 | 99 | 49.5 | 64 | 126 | 1.16 |
| SL-CT104-20 | 12.5 | 50 | 23 | 118 | 58 | 75.6 | 152 | 2.2 |
WLL = Working Load Limit. All dimensions and weights are nominal.
