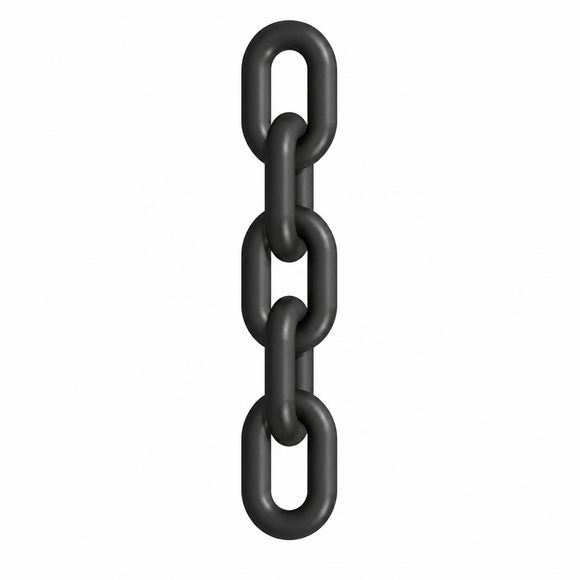

Grade 80 Lifting Chain

Grade 80 alloy steel lifting chain designed for chain slings and general lifting applications. The chain is manufactured and tested in accordance with EN 818-2 requirements.

Grade 80 short-link lifting chain

Item No.	Chain Size	WLL (t)	Proof Force (kN)	Minimum Breaking Force (kN)	Ø (mm)	P (mm)	b1 Max. (mm)	b2 Max. (mm)
DSL-105-6	6 mm	1.1	28.3	45.2	6 0 −0.05	18 +0.05 −0.02	8	20
DSL-105-7	7 mm	1.5	38.5	61.6	7 +0.10 0	21 +0.06 −0.025	9.5	23.5
DSL-105-8	8 mm	2	50.3	80.4	8 0 −0.05	24 +0.07 −0.03	10	26
DSL-105-9	9 mm	2.5	62.5	101	9 0 −0.05	27 +0.07 −0.03	12	30
DSL-105-10	10 mm	3.2	78.5	126	10 0 −0.05	30 +0.08 −0.04	13	33
DSL-105-11	11 mm	3.8	95	160	11 −0.10 −0.20	33 +0.09 −0.04	14	36
DSL-105-12	12 mm	4.5	113	185	12 −0.10 −0.20	36 +0.10 −0.05	16	40
DSL-105-13	13 mm	5.3	133	216	13 −0.10 −0.20	39 +0.12 −0.05	17	43
DSL-105-14	14 mm	6	150	248	14 −0.10 −0.20	42 +0.12 −0.05	19	47
DSL-105-16	16 mm	8	301	324	16 −0.10 −0.20	48 +0.14 −0.06	22	54
DSL-105-18	18 mm	10	254	410	18 −0.10 −0.20	54 +0.16 −0.08	25	61
DSL-105-20	20 mm	12.5	314	505	20 −0.10 −0.20	60 +0.18 −0.08	30	70
DSL-105-22	22 mm	15	380	612	22 +0.05 −0.05	66 +0.20 −0.09	31	75
DSL-105-24	24 mm	18	420	720	24	72 +0.36 −0.36	32	80
DSL-105-26	26 mm	21.3	510	850	26	78 +0.40 −0.40	36	88
