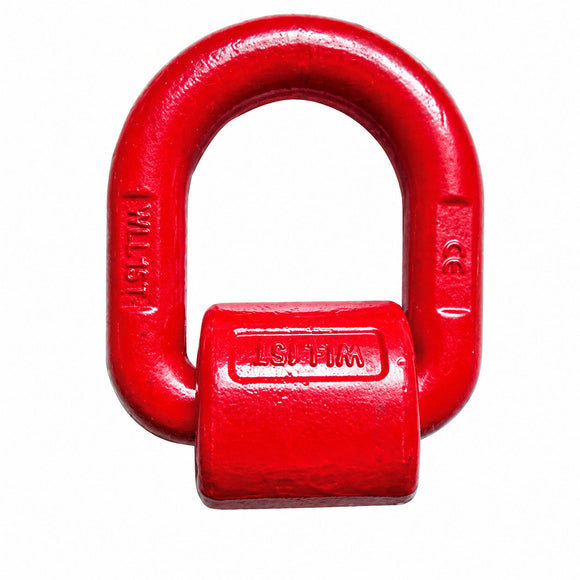

Grade 80 Forged D-Ring with Weld-On Lifting Point
Grade 80 forged D-ring supplied with a weld-on lifting point for permanent installation on suitable steel structures. Available with Working Load Limits from 1.12 to 15 tonnes.
| Item No. | WLL (t) |
Breaking Load (t) |
Ø (mm) |
A (mm) |
B (mm) |
L (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| SL-R1009-1.12 | 1.12 | 4.48 | 13 | 41 | 37 | 78.5 | 0.4 |
| SL-R1009-2 | 2 | 8 | 14 | 42 | 40 | 88 | 0.47 |
| SL-R1009-3.15 | 3.15 | 12.6 | 17 | 45 | 42.5 | 94 | 0.7 |
| SL-R1009-5.3 | 5.3 | 21.2 | 22 | 55 | 50 | 118 | 1.46 |
| SL-R1009-8 | 8 | 32 | 26.5 | 70 | 66.5 | 141 | 2.5 |
| SL-R1009-15 | 15 | 60 | 34 | 97 | 90 | 188 | 5.8 |
