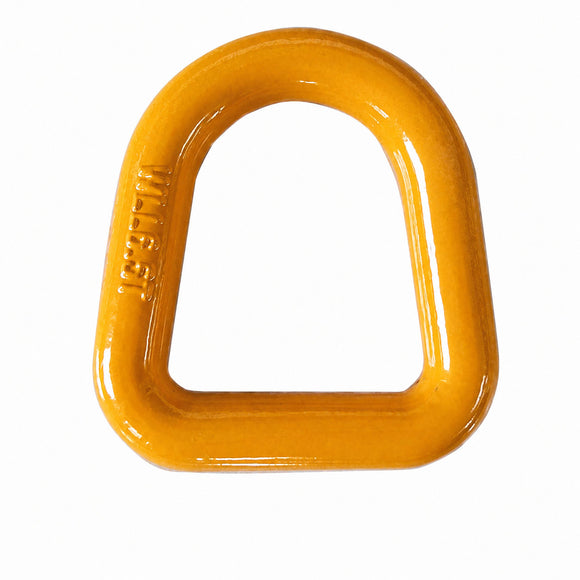

Grade 80 Forged D-Ring
Grade 80 forged D-ring designed for lifting and rigging assemblies. Available with Working Load Limits from 2.5 to 8 tonnes.
| Item No. | WLL (t) |
Breaking Load (t) |
A (mm) |
B (mm) |
Ø (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|
| SL-R1008-2.5 | 2.5 | 10 | 65 | 55 | 14 | 0.3 |
| SL-R1008-3.8 | 3.8 | 15.2 | 62 | 64 | 17 | 0.47 |
| SL-R1008-6.5 | 6.5 | 26 | 80 | 72 | 19 | 0.7 |
| SL-R1008-8 | 8 | 32 | 90 | 75 | 22 | 1.1 |
