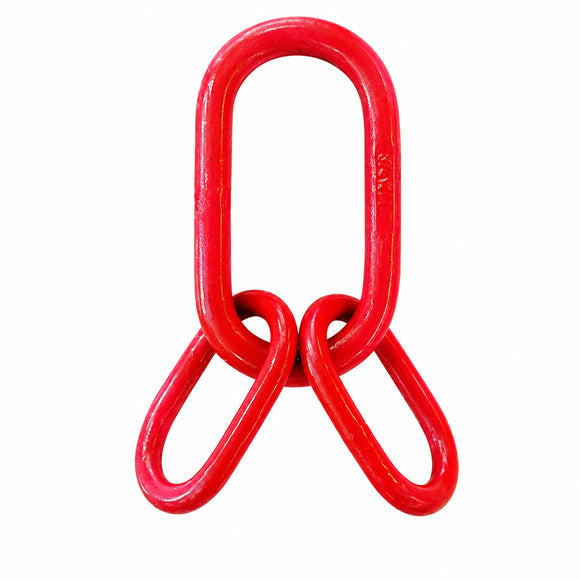

Grade 80 European-Type Master Link Assembly
Grade 80 European-type master link assembly designed for multi-leg chain sling and lifting assemblies. Available with Working Load Limits from 2.36 to 63 tonnes.
| Item No. | Weight (kg) |
WLL (t) |
A (mm) |
B (mm) |
D (mm) |
a (mm) |
b (mm) |
d (mm) |
|---|---|---|---|---|---|---|---|---|
| SL-R1004-2.36 | 1.18 | 2.36 | 135 | 75 | 18 | 54 | 25 | 13 |
| SL-R1004-3.15 | 1.24 | 3.15 | 135 | 75 | 18 | 60 | 38 | 13 |
| SL-R1004-4.25 | 2.2 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 |
| SL-R1004-6.7 | 3.4 | 6.7 | 180 | 100 | 26 | 85 | 40 | 18 |
| SL-R1004-11.2 | 6.1 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 |
| SL-R1004-17 | 9.98 | 17 | 260 | 140 | 36 | 140 | 65 | 26 |
| SL-R1004-21.2 | 18.9 | 21.2 | 340 | 180 | 45 | 180 | 100 | 32 |
| SL-R1004-26.5 | 22.6 | 26.5 | 350 | 190 | 50 | 180 | 100 | 32 |
| SL-R1004-31.5 | 25.2 | 31.5 | 350 | 190 | 50 | 180 | 100 | 36 |
| SL-R1004-45 | 35.2 | 45 | 400 | 200 | 56 | 180 | 100 | 40 |
| SL-R1004-50 | 47 | 50 | 430 | 220 | 63 | 180 | 100 | 45 |
| SL-R1004-63 | 66.46 | 63 | 460 | 250 | 72 | 200 | 110 | 50 |
