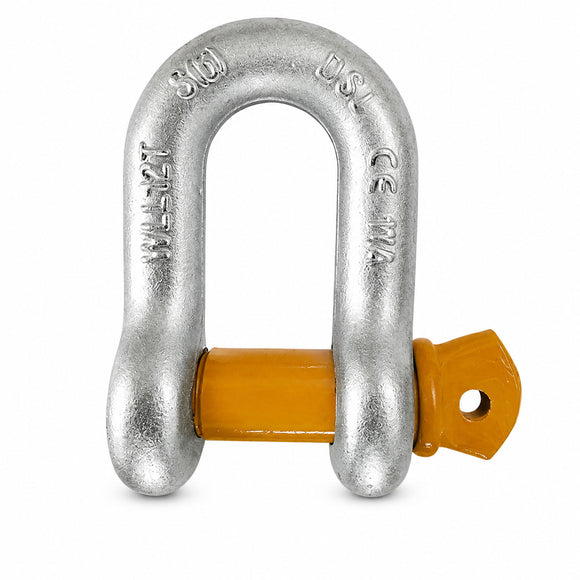

Grade 6 DW Type Shackle
Product Overview
The Grade 6 DW Type Shackle is available in working load limits from 2 to 120 metric tonnes. Refer to the dimensional drawing and specification table below to select the required model and size.
Dimensions and Technical Specifications
| Model | WLL (t) |
A (mm) |
B (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SL-S1005-2 | 2 | 21 | 16 | 13 | 47 | 30 | 42 | 0.3 |
| SL-S1005-3.25 | 3.25 | 27 | 19 | 16 | 59 | 38 | 51 | 0.58 |
| SL-S1005-4.75 | 4.75 | 32 | 23 | 19 | 70 | 46 | 60.5 | 0.98 |
| SL-S1005-6.5 | 6.5 | 37 | 25 | 22.5 | 82 | 53 | 71.5 | 1.45 |
| SL-S1005-8.5 | 8.5 | 43 | 29 | 25.5 | 94 | 60.5 | 81 | 2.1 |
| SL-S1005-9.5 | 9.5 | 46 | 32 | 30 | 106 | 68.5 | 91 | 3 |
| SL-S1005-12 | 12 | 52 | 35 | 32 | 116 | 76 | 100 | 4.2 |
| SL-S1005-13.5 | 13.5 | 57 | 38 | 35 | 127 | 84 | 111 | 5.8 |
| SL-S1005-17 | 17 | 60.5 | 42 | 38 | 136.5 | 92 | 122 | 7 |
| SL-S1005-25 | 25 | 73 | 51 | 44.5 | 162 | 106.5 | 146 | 11.6 |
| SL-S1005-35 | 35 | 83 | 57 | 51 | 185 | 122 | 171.5 | 18 |
| SL-S1005-55 | 55 | 105 | 70 | 66.5 | 238 | 144.5 | 203 | 33 |
| SL-S1005-85 | 85 | 130 | 83 | 76 | 279 | 165 | 216 | 55.2 |
| SL-S1005-120 | 120 | 135 | 95 | 92 | 325 | 203 | 240 | 85 |
