GCL Series Geared Beam Trolley
The GCL Series geared trolley provides controlled horizontal movement along a compatible I-beam. The operator pulls the hand chain to move the suspended load, making the trolley suitable for applications where more precise positioning is required than with a standard push trolley. GCL-A and GCL-B configurations are available in capacities up to 30 metric tons.

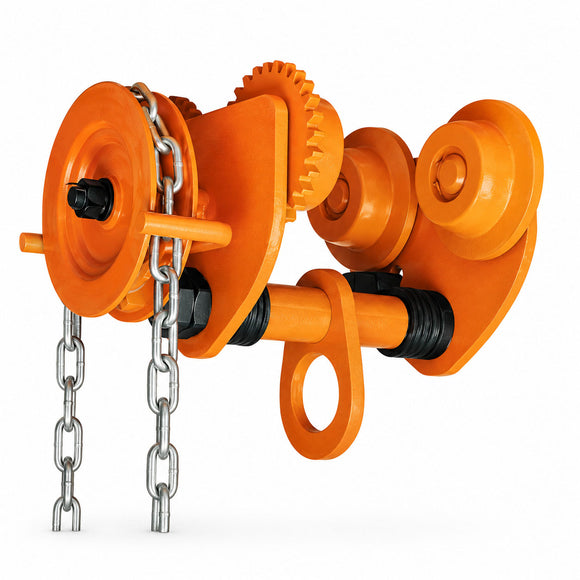

GCL-A Geared Trolley
The GCL-A is a compact hand-chain-operated trolley designed to move compatible lifting equipment along an I-beam. The geared mechanism provides controlled travel and helps position suspended loads more accurately.
- Available in capacities from 0.5 to 10 metric tons
- Hand-chain-operated horizontal travel
- Adjustable to suit different I-beam flange widths
- Compact side-plate construction
- Central suspension eye for connecting a suitable hoist
GCL-A Technical Specifications
| Capacity (t) |
I-Beam Width (mm) |
Net Weight (kg) |
Dimensions (mm) | |||
|---|---|---|---|---|---|---|
| A | B | C | D | |||
| 0.5 | 75–125 | 5 | 271 | 170 | 190 | 106.5 |
| 1 | 75–125 | 15 | 277 | 206 | 222 | 123.5 |
| 1.5 | 100–150 | 18 | 311 | 228 | 236.5 | 125 |
| 2 | 100–150 | 18 | 311 | 240 | 267 | 132.5 |
| 3 | 100–150 | 35 | 358 | 282 | 320 | 175 |
| 5 | 125–175 | 54 | 401 | 327 | 391.5 | 190 |
| 10 | 125–180 | 100 | 442 | 389 | 490 | 275 |

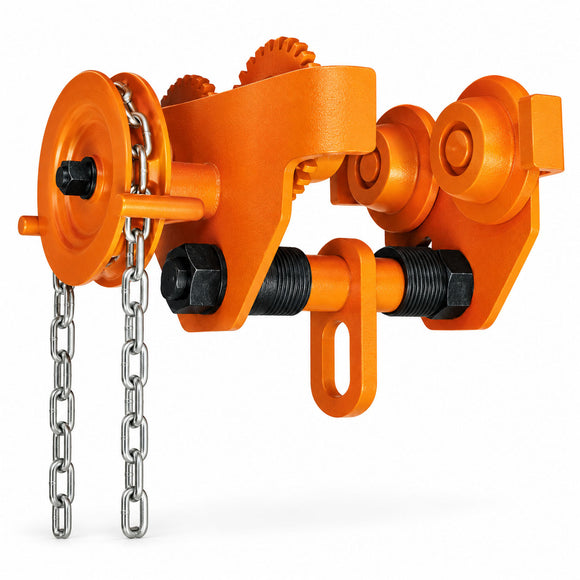

GCL-B Geared Trolley
The GCL-B combines an enclosed upper frame with a hand-chain drive for controlled movement along the supporting beam. Its broad capacity range makes it suitable for both general industrial lifting and heavier material-handling applications.
- Available in capacities from 0.5 to 30 metric tons
- Controlled movement using the hand chain
- Broad adjustment range for different beam widths
- Central suspension point for hoist connection
- Suitable for workshops, warehouses and industrial facilities
GCL-B Technical Specifications
| Capacity (t) |
I-Beam Width (mm) |
Net Weight (kg) |
Dimensions (mm) | |||
|---|---|---|---|---|---|---|
| A | B | C | D | |||
| 0.5 | 64–140 | 14 | 308.5 | 212 | 198.5 | 113 |
| 1 | 64–140 | 19 | 328.5 | 255 | 231.5 | 128 |
| 2 | 76–165 | 29 | 361.5 | 302 | 278 | 152 |
| 3 | 76–203 | 40 | 428.5 | 344 | 338 | 186 |
| 5 | 88–203 | 65 | 434 | 378 | 393 | 219 |
| 10 | 125–203 | 103 | 487.5 | 455 | 490 | 275.5 |
| 20 | 136–203 | 245 | 547 | 642 | 622 | 315 |
| 30 | 144–175 | 255 | 517 | 642 | 557 | 245 |
Product Features
Controlled Geared Travel
The hand-chain-driven gear mechanism provides controlled movement and helps the operator position the load along the beam.
Adjustable Beam Fit
The trolley can be adjusted to suit the specified I-beam flange-width range for the selected capacity.
Wide Capacity Range
Multiple configurations are available with rated capacities from 0.5 to 30 metric tons.
No Electrical Power Required
Manual hand-chain operation allows the trolley to work without an electrical travel motor or external power supply.
Compatible Hoist Suspension
The central suspension point can be connected to a compatible manual chain hoist, lever hoist or other approved lifting device.
Industrial Applications
Suitable for workshops, warehouses, maintenance bays, assembly areas and other material-handling environments.
