Grade 70 H-Link

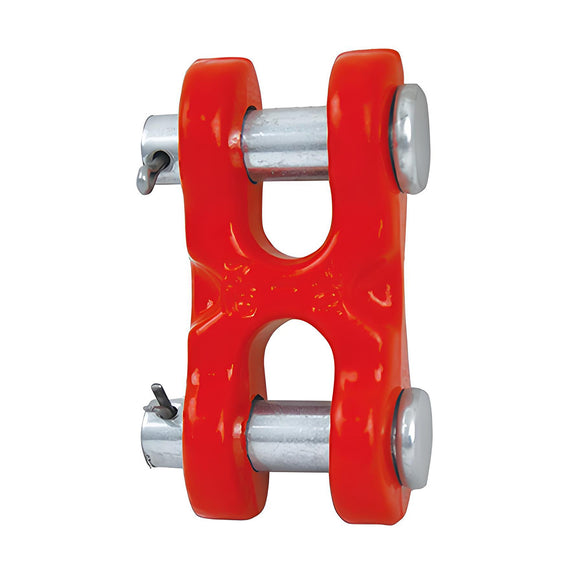

G70 TWIN LINK RING (H-BUCKLE) • For Lashing & Towing Only • Not for Lifting
- Features: Alloy steel die-forged.
- Batch-tested for breaking strength.
- 100% magnetic particle inspection.
- Important: Grade 70 is for binding and towing only. Never use for overhead lifting.
Specifications & Dimensions
| Model | WLL (T) | B.L. (T) | A (mm) | B (mm) | C (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| SL-CT106-2 | 2 | 8 | 10 | 28 | 32 | 65 | 0.21 |
| SL-CT106-3 | 3 | 12 | 12 | 34 | 41 | 78 | 0.35 |
| SL-CT106-5 | 5 | 20 | 15 | 45 | 52.3 | 100.5 | 0.76 |
| SL-CT106-7.5 | 7.5 | 30 | 20 | 56 | 66 | 125.5 | 1 |
Grade 70 H-Link • G70 TWIN LINK RING
Alloy steel die-forged. 100% magnetic particle inspected. For binding and towing only. Not for lifting.
Alloy steel die-forged. 100% magnetic particle inspected. For binding and towing only. Not for lifting.
