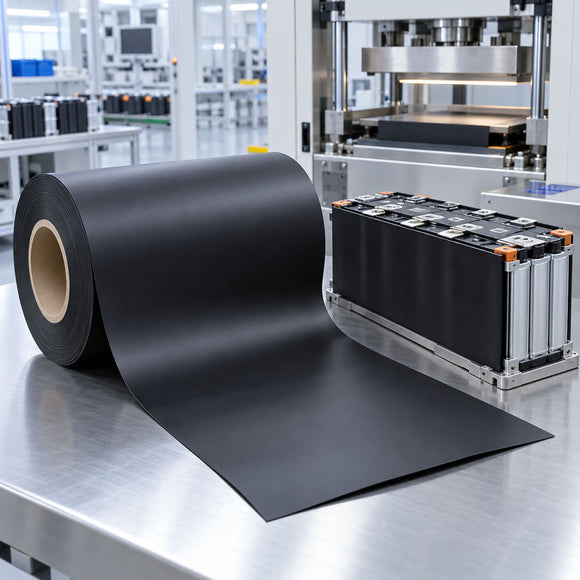

FR-100 Hot-Press Insulating Film
A black polyester film coated with flame-retardant, heat-curing adhesive for electrical insulation and structural bonding after hot pressing.
Product Features
- Flame-retardant construction
- Good peel strength after curing
- High-temperature resistance
- Electrical insulation performance
- Flexible and reliable
Applications
Battery ModulesBonding and insulation of power lithium battery modules.
Electrical ComponentsInsulating and bonding selected components.
Equipment InsulationFlexible insulation for compatible assemblies.
Technical Specifications
| Item | Reference Value |
|---|---|
| Hot-press temperature | 150-170°C |
| Constant-temperature dwell | 15-25 min |
| Pressure | 10-15 kg/cm² |
| Tensile strength | MD 130 MPa; TD 140 MPa |
| Flammability | VTM-0 |
| Storage | <30°C; RH <75% |
| Shelf life | 6 months |
Recommended Processing
Heating time is excluded from the stated dwell time. Confirm the final temperature, pressure and time with the actual curing equipment and assembly.
Specifications are reference values from the supplied product document. Confirm the final specification and processing conditions before ordering or production use.
