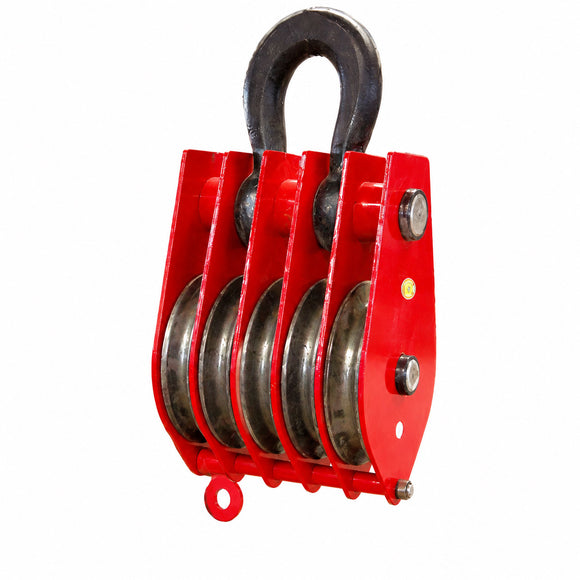

Five-Sheave Pulley Block with Lifting Eye
This five-sheave pulley block features an integrated lifting eye and is designed for high-capacity wire-rope lifting and pulling applications. Its five-sheave configuration provides efficient wire-rope routing in heavy-duty lifting systems.
Product Features
- The upper attachment is manufactured from high-quality alloy steel and designed with a 3:1 safety factor.
- Available with cast-iron, cast-steel or hot-rolled steel sheaves.
- Sheave bearing options include composite wear-resistant bushings, solid bronze bushings, ball bearings and needle bearings.
- Additional working-load capacities can be manufactured to order.
Dimensions and Technical Specifications
| Item No. | WLL (t) |
Test Load (kN) |
Outside Dimensions (mm) | Wire Rope Diameter (mm) | Eye Opening R (mm) |
Weight (kg) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| H | B | Lmax | Φ | Recommended | Max. | |||||
| SL-HQD5-20 | 20 | 128 | 680 | 212 | 360 | 24 | 15 | 18 | 50 | 75 |
| SL-HQD5-32 | 32 | 448 | 900 | 275 | 405 | 41 | 20 | 23 | 65 | 135 |
| SL-HQD5-50 | 50 | 700 | 1150 | 364 | 470 | 44 | 23 | 31 | 100 | 265 |
| SL-HQD5-80 | 80 | 1040 | 1265 | 410 | 530 | 89 | 28 | 31 | 88 | 420 |
WLL = Working Load Limit. All dimensions and technical values are based on the source product data.
