01

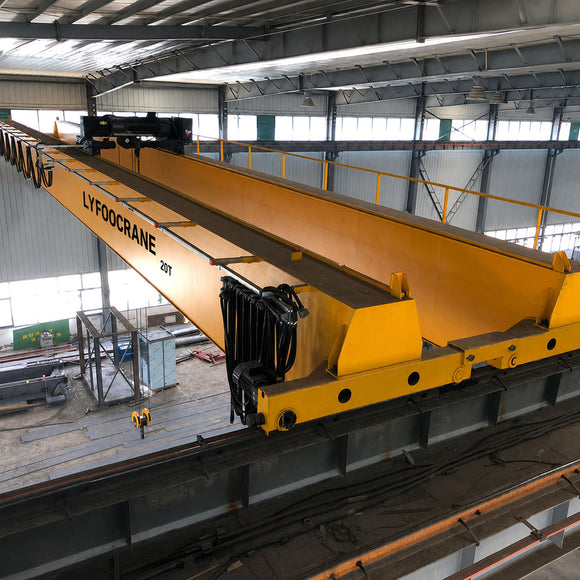

Double Bridge Girders
Fabricated from Q235B structural steel using controlled forming and welding processes for strength, dimensional stability and a clean finished profile.
High-Performance Material Handling

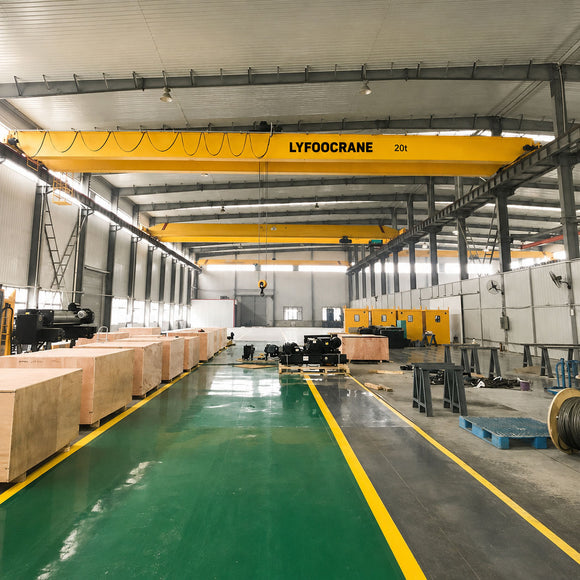

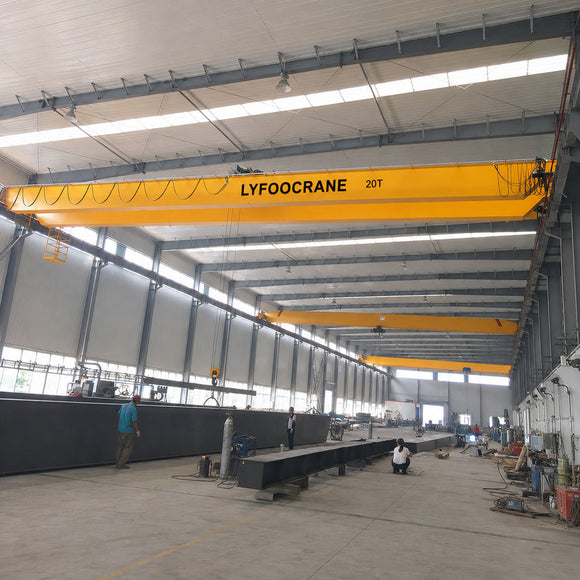

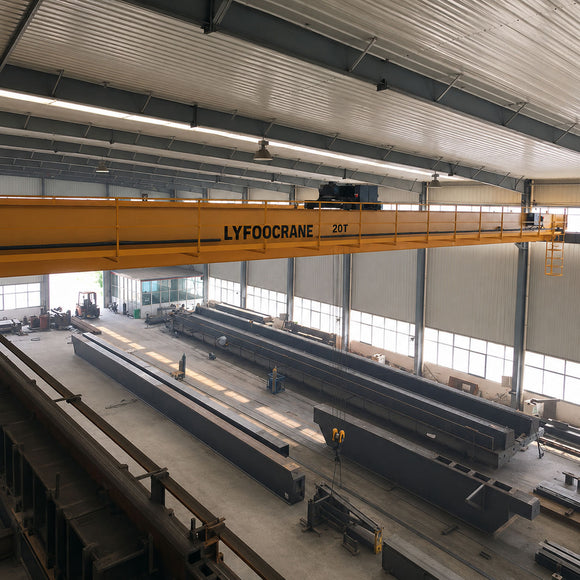

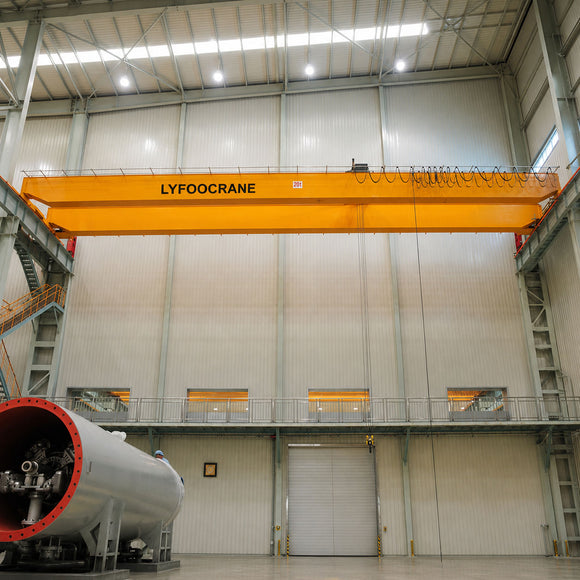

European-Style Double-Girder Overhead Crane
A compact, high-duty bridge crane engineered for smooth load handling, accurate positioning and efficient use of available building space.
Request a Custom Quote
5–50 tRated Capacity
10.5–31.5 mSpan
6–12 mLifting Height
M5Duty Classification
Compact Design. Heavy-Duty Performance.
This double-girder overhead crane combines two bridge girders, end trucks, a low-headroom wire-rope hoist trolley and an integrated electrical control system. It is designed for applications requiring greater capacity, higher duty and more precise handling than a typical single-girder crane.
More Usable Space Inside Your Facility
The optimized bridge and trolley geometry reduces headroom requirements and minimizes hook approach distances. This improves floor coverage and available lifting height while helping reduce unnecessary building height and structural cost.
- Reduced deadweight through an optimized modular structure
- Low-headroom trolley for improved hook coverage
- Smooth acceleration and deceleration
- Reduced load swing and more accurate positioning
- Custom configurations for different facilities and processes
Key System Components
A coordinated bridge, trolley and control package supports dependable travel, lifting and load positioning throughout the crane's working area.
02
End Trucks
Rigid end-truck assemblies with matched drive motors and durable crane wheels provide stable, synchronized long travel.
03
Wire-Rope Hoist Trolley
A compact low-headroom hoist trolley delivers efficient lifting, cross travel and precise hook positioning with simplified maintenance access.
04
Electrical Control System
An organized control cabinet can be configured with internationally recognized electrical components to suit the project specification.
Smooth and Controlled Operation
Dual-speed drives or variable-frequency control can be used to produce gradual starting, acceleration and braking. The result is smoother travel, reduced load swing and faster, more repeatable positioning.
- Pendant control for convenient floor-level operation
- Optional remote control configuration
- Adjustable travel speeds for process requirements
- Controlled motion for delicate or high-value loads
- Integrated braking and travel limit protection
Technical Specifications
The following values represent the standard product range. Final dimensions, speeds, duty classification and electrical configuration are confirmed for each project.
| Rated Capacity | 5 t | 10 t | 16 t | 20 t | 32 t | 50 t |
|---|---|---|---|---|---|---|
| Span | 10.5–31.5 m | |||||
| Lifting Height | 6–12 m | |||||
| Duty Classification | M5 | |||||
| Lifting Speed | 0.8 / 5 m/min | 0.8 / 5 m/min | 0.66 / 4 m/min | 0.53 / 3.4 m/min | 0.8 / 3.3 m/min | 0.53 / 3.2 m/min |
| Trolley Travel Speed | 2–20 m/min | |||||
| Crane Travel Speed | 3–30 m/min | |||||
| Operating Temperature | −25°C to +40°C | |||||
Specifications are configurable. Verify the required capacity, span, lifting height, duty cycle, speed, runway conditions, power supply and local compliance requirements before ordering.
Typical Applications
Manufacturing & Assembly
Move machinery, tooling, fabrications and production materials safely between workstations.
Steel & Metal Processing
Handle plates, coils, profiles and finished components with a lifting attachment selected for the load.
Warehousing & Maintenance
Support equipment installation, planned maintenance and heavy material movement across the workshop.
Built Around Your Project
Each crane can be engineered around your facility layout, load characteristics and operating environment. Available project options may include:
- Customized capacity, span and hook height
- Single- or dual-speed motion and variable-frequency drives
- Pendant or remote operation
- Custom power supply and control voltage
- Special lifting attachments and below-the-hook devices
- Runway beams, conductor systems and installation support
Request a Crane Designed for Your Facility
For a proper proposal, please provide the required lifting capacity, span, lifting height, duty cycle, power supply, runway details and the type of load to be handled.
Send Your Requirements
