Electrical Wire Rope Hoist (CD1/MD1)

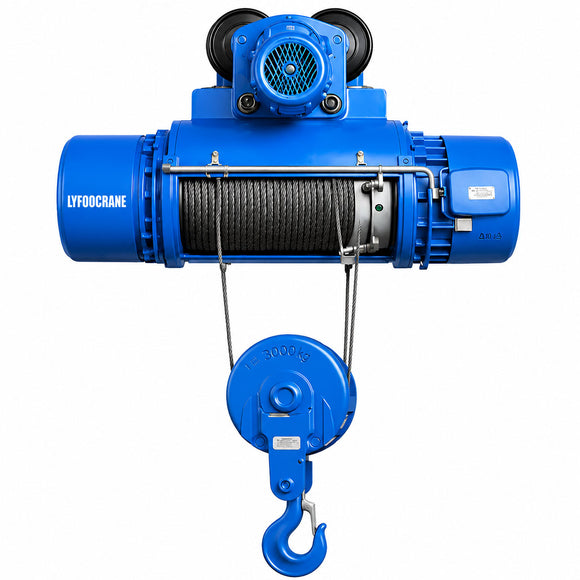

CD1/MD1 Electric Wire Rope Hoist

A compact lifting solution for overhead cranes, gantry cranes and jib cranes, this electric wire rope hoist combines dependable load handling with a space-efficient design. Choose the CD1 single-speed model for general lifting or the MD1 dual-speed model when slower, more precise positioning is required.

MD1 Double Speed Hoist
CD1 Single Speed Hoist
Single- or Dual-Speed LiftingCD1 models provide one standard lifting speed. MD1 models add a low-speed setting for controlled load positioning.
Versatile Crane IntegrationSuitable for single- and double-girder overhead cranes, gantry cranes and jib cranes, with winch-style configurations available for selected applications.
Compact, Serviceable DesignA lightweight, space-efficient layout and widely compatible components help simplify installation and routine maintenance.

CD and MD Model Selection

Series Speed Configuration Best Suited For Available Capacities in Table Control Options
CD1 Single speed General lifting and routine material handling 0.5–20 t Pendant or optional remote control
MD1 Dual speed Assembly, loading and applications requiring precise positioning 0.5–20 t Pendant or optional remote control

Technical Specifications

Rated Capacity CD1 Lifting Speed MD1 Lifting Speed Trolley Travel Speed Wire Rope Diameter Wire Rope Construction Hoist Motor Hoist Power Hoist Motor Speed Trolley Motor Trolley Power Trolley Motor Speed
0.5 t 8 m/min 0.8 / 8 m/min 20 / 30 m/min 4.8 mm 6×37+1 ZD121-4 0.8 kW 1380 r/min ZDY111-4 0.2 kW 1380 r/min
1 t 8 m/min 0.8 / 8 m/min 20 / 30 m/min 7.4 mm 6×37+1 ZD122-4 1.5 kW 1380 r/min ZDY111-4 0.2 kW 1380 r/min
2 t 8 m/min 0.8 / 8 m/min 20 / 30 m/min 11 mm 6×37+1 ZD131-4 3.0 kW 1380 r/min ZDY112-4 0.4 kW 1380 r/min
3 t 8 m/min 0.8 / 8 m/min 20 / 30 m/min 13 mm 6×37+1 ZD132-4 4.5 kW 1380 r/min ZDY112-4 0.4 kW 1380 r/min
5 t 8 m/min 0.8 / 8 m/min 20 / 30 m/min 15 mm 6×37+1 ZD141-4 7.5 kW 1380 r/min ZDY121-4 0.8 kW 1380 r/min
10 t 7 m/min 0.7 / 7 m/min 20 / 30 m/min 15 mm 6×37+1 ZD151-4 13 kW 1380 r/min ZDY121-4 0.8 kW × 2 1380 r/min
16 t 3.5 m/min 0.35 / 3.5 m/min 20 m/min 17.5 mm 6×37+1 ZD151-4 13 kW 1380 r/min ZDY121-4 0.8 kW × 2 1380 r/min
20 t 4 m/min Confirm for selected model 20 m/min 19.5 mm 6×37+1 ZD152-4 18.5 kW 1380 r/min ZDY121-4 0.8 kW × 4 1380 r/min

Available Lifting Heights

Capacity Group Published Lifting-Height Options Ordering Guidance
Selected compact configurations 3 / 6 / 9 m Confirm availability for the selected capacity and model.
Standard configurations 6 / 9 / 12 / 18 / 24 / 30 m Final motor, drum and rope selection depends on lift height.
Selected heavy-duty configurations 9–30 m or 9 / 12 / 18 m Request a model-specific configuration before ordering.
Electrical configuration: The published specification table is based on three-phase AC 380 V, 50 Hz. The product range is also listed with three-phase 220–690 V power supply options, Class F insulation and 24 / 36 / 48 V control voltage. Confirm the required voltage and frequency before ordering.

Key Components

Conical-Rotor Hoist MotorAn integrated brake supports stable starting, effective stopping and straightforward maintenance.
Gear ReducerTreated gears and ball or roller bearing supports promote smooth transmission and resistance to wear.
Grooved Rope DrumA seamless grooved drum supports orderly single-layer rope winding and helps reduce abrasive wear.
Two-Piece Rope GuideThe full-circumference guide helps keep the rope correctly seated on the drum, including under unloaded conditions.
Wire RopeThe specified 6×37+1 rope construction is paired with capacity-appropriate rope diameters from 4.8 to 19.5 mm.
Rotating Hook BlockThe hook rotates through 360° and includes a safety latch. The published product information states that the hook block is proof-tested at 150% of rated load before assembly.

Typical Applications

Suitable for factories, warehouses, workshops, ports, storage facilities, mines and general material-handling operations. The dual-speed MD configuration is particularly useful for assembly, equipment maintenance and other work requiring controlled final positioning.

Selection note: Published series capacity extends from 0.5 to 50 t, while the detailed table above covers 0.5 to 20 t. The source table does not display a separate 20 t MD low-speed value clearly, so it is intentionally left for confirmation. Always verify capacity, lifting height, duty requirements, power supply, control voltage and trolley speed for the final configuration.
