Electric Hoist Trolley
The LYFOOCRANE electric hoist trolley provides powered horizontal travel
along a compatible I-beam. It can be combined with an electric or manual
hoist to create an efficient lifting system for workshops, warehouses,
assembly areas and light industrial applications.
Compact Powered Beam Travel
Designed for 0.5-ton and 1-ton lifting systems, this motorized trolley helps move suspended loads smoothly along straight I-beam tracks. Four-wheel and six-wheel configurations are available for different operating requirements.
- Powered travel reduces manual pushing and operator effort.
- Available for 110 V, 220 V or 380 V electrical systems.
- Compatible with selected No. 10–20 I-beam sections.
- Suitable for beam flange widths from 68 to 100 mm.
- Four-wheel and six-wheel configurations are available.
- Compact construction for use with different hoist types.
Available Configurations
| Rated Capacity | Power Supply | Wheel Configuration | Compatible I-Beam | Beam Flange Width |
|---|---|---|---|---|
| 0.5 t | 110 V, 220 V or 380 V | 4 Wheels | No. 10–20 | 68–100 mm |
| 1 t | 110 V, 220 V or 380 V | 4 Wheels | No. 10–20 | 68–100 mm |
| 1 t | 110 V, 220 V or 380 V | 6 Wheels | No. 10–20 | 68–100 mm |
Product Features
Powered Travel
Electric drive provides controlled horizontal movement and reduces the
physical effort required to reposition a suspended load.
Adjustable Beam Fit
The trolley is designed for selected I-beams with flange widths between
68 and 100 mm. Correct adjustment helps maintain stable wheel contact.
Durable Steel Construction
Heavy-duty side plates, steel wheels and a geared drive system support
reliable operation in industrial working environments.

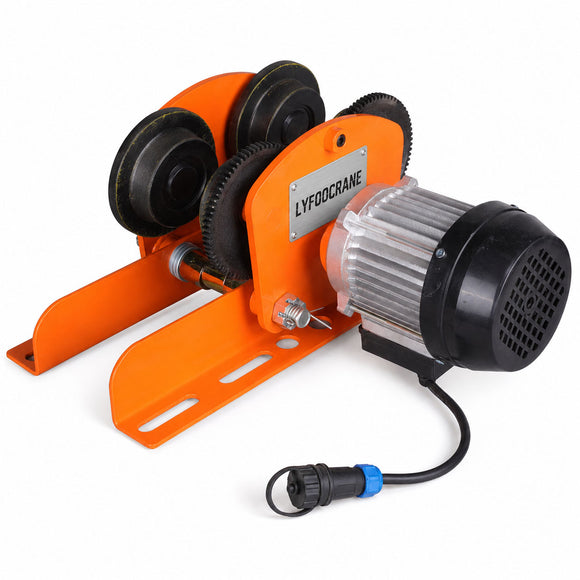

Four-Wheel Option
A compact standard configuration suitable for general lifting and
material-handling applications.

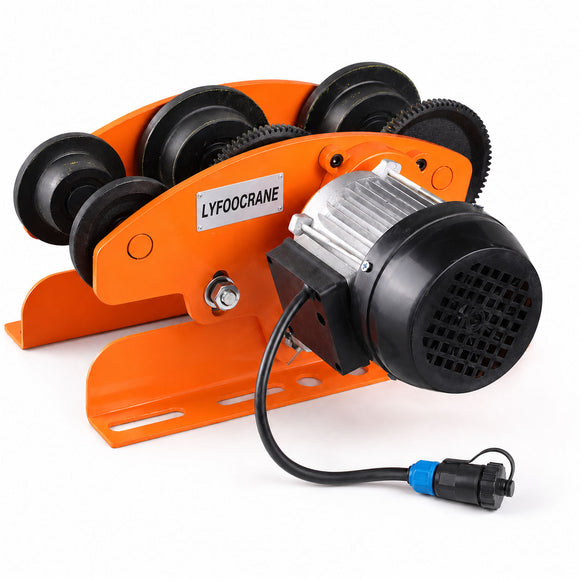

Six-Wheel Option
The additional wheels increase the number of beam contact points and may
provide improved travel stability for suitable installations.
Multiple Voltage Options
Select 110 V, 220 V or 380 V according to the available site power supply
and the electrical requirements of the complete lifting system.
Typical Applications
This electric trolley can be installed on compatible straight I-beam tracks and used with lifting equipment in workshops, warehouses, production lines, maintenance areas, small bridge cranes and jib crane systems.
How to Select the Correct Trolley
- Confirm that the trolley capacity is equal to or greater than the rated capacity of the hoist and intended load.
- Measure the actual beam flange width and confirm that it falls within the specified 68–100 mm range.
- Confirm the I-beam section, flange thickness and running-surface condition.
- Select the correct 110 V, 220 V or 380 V version according to the power supply available at the installation site.
- Confirm the required power frequency and phase configuration before placing an order.
- Choose between the four-wheel and six-wheel configurations according to the required installation and travel arrangement.
- Confirm the required travel speed, control method and cable arrangement before ordering.
Important: “No. 10–20 I-beam” refers to the beam-size
designation shown in the supplied product data. The actual flange width,
flange thickness and wheel compatibility must be checked before installation.
Available power supply options include 110 V, 220 V and 380 V. Travel speed,
motor power, frequency, phase configuration and control voltage should be
confirmed before ordering.
