Electrical Hoist with Twin-Hook (0.5T~5T)

TWSK Twin-Hook Electric Chain Hoist

The TWSK twin-hook electric chain hoist uses one lifting drive to operate two load hooks together, helping both lifting points rise and lower at the same level. It is designed for wide, long or balanced loads that require two synchronized lifting points, with capacities ranging from 250 kg + 250 kg to 2.5 t + 2.5 t.

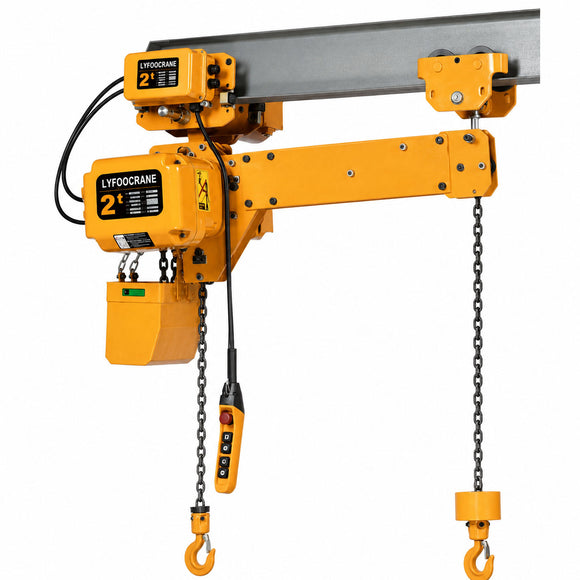

TWSK twin-hook electric chain hoist with motorized trolley
TWSK Twin-Hook Electric Chain Hoist
Synchronized Twin-Hook LiftingTwo lifting points move together to help keep wide loads level during handling.
Five Capacity OptionsAvailable from 250 kg + 250 kg through 2.5 t + 2.5 t for different load requirements.
Motorized TrolleyProvides powered horizontal travel along compatible straight I-beams.

Model Comparison

Model Combined Capacity Capacity per Hook Lifting Height Lifting Speed Hoist Motor Trolley Motor I-Beam Width
TWSK005 500 kg 250 kg + 250 kg 3 / 9 m 7.8 m/min 0.75 kW 0.4 kW 80–160 mm
TWSK010 1 t 500 kg + 500 kg 3 / 9 m 6.8 m/min 1.5 kW 0.4 kW 80–160 mm
TWSK020 2 t 1 t + 1 t 3 / 9 m 5.6 m/min 1.5 kW 0.4 kW 82–178 mm
TWSK030 3 t 1.5 t + 1.5 t 3 / 9 m 5.4 m/min 3.0 kW 0.4 kW 100–180 mm
TWSK050 5 t 2.5 t + 2.5 t 3 / 9 m 2.7 m/min 3.0 kW 0.75 kW 110–180 mm

Technical Specifications

Model Capacity Lift Lifting Speed Hoist Power Hoist Motor Speed Hoist Phases Hoist Voltage Frequency Trolley Power Trolley Motor Speed Trolley Phases Trolley Voltage Frequency I-Beam Width
TWSK005 250 kg + 250 kg 3 / 9 m 7.8 m/min 0.75 kW 1440 r/min 3-phase 220–440 V 50/60 Hz 0.4 kW 1440 r/min 3-phase 220–440 V 50/60 Hz 80–160 mm
TWSK010 500 kg + 500 kg 3 / 9 m 6.8 m/min 1.5 kW 1440 r/min 3-phase 220–440 V 50/60 Hz 0.4 kW 1440 r/min 3-phase 220–440 V 50/60 Hz 80–160 mm
TWSK020 1 t + 1 t 3 / 9 m 5.6 m/min 1.5 kW 1440 r/min 3-phase 220–440 V 50/60 Hz 0.4 kW 1440 r/min 3-phase 220–440 V 50/60 Hz 82–178 mm
TWSK030 1.5 t + 1.5 t 3 / 9 m 5.4 m/min 3.0 kW 1440 r/min 3-phase 220–440 V 50/60 Hz 0.4 kW 1440 r/min 3-phase 220–440 V 50/60 Hz 100–180 mm
TWSK050 2.5 t + 2.5 t 3 / 9 m 2.7 m/min 3.0 kW 1440 r/min 3-phase 220–440 V 50/60 Hz 0.75 kW 1440 r/min 3-phase 220–440 V 50/60 Hz 110–180 mm

Dimensions

TWSK twin-hook electric chain hoist dimensional drawing
TWSK Twin-Hook Dimensional Drawing
Model Capacity H A B D P U S K L M R T N Chain
TWSK005 250 kg + 250 kg 450 660 320 200 206 111 3000 Ø32 25 80–160 142 231 17 Ø6.3 × 19
TWSK010 500 kg + 500 kg 550 660 350 200 206 111 3000 Ø40 31 80–160 142 231 17 Ø8.0 × 24
TWSK020 1 t + 1 t 550 780 440 260 206 111 3000 Ø40 31 82–178 142 231 24 Ø8.0 × 24
TWSK030 1.5 t + 1.5 t 650 870 310 300 265 140 3000 Ø59 42 100–180 142 231 35 Ø11.2 × 34
TWSK050 2.5 t + 2.5 t 850 870 310 300 296 156 3000 Ø60 45 110–180 142 231 43 Ø11.2 × 34

Dimensions: All dimensional values are in millimeters unless otherwise stated. Dimension S is the nominal 3000 mm spacing between the two lifting points. Confirm the required hook spacing, voltage, lifting height, beam profile and load distribution before ordering.

Typical Applications

Suitable for lifting long workpieces, frames, beams, tooling, fixtures and other wide loads that require two coordinated lifting points to remain level.
