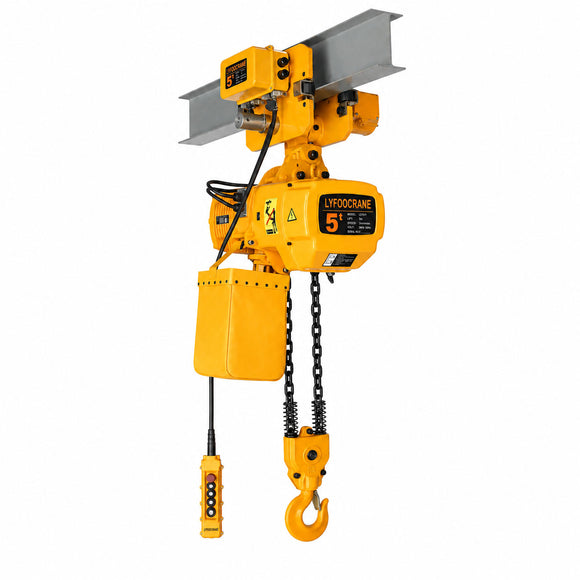

Electric Chain Hoist with Motorized Trolley
Combines powered lifting and powered trolley travel for efficient vertical and horizontal load movement. Nine models cover rated capacities from 0.5 to 5 tons.
Electric Chain Hoist with Motorized Trolley
0.5–5 Ton RangeNine model and speed combinations support different lifting requirements.
3 / 9 m Standard LiftAll listed models are available with the lifting heights shown in the source data.
Application-Specific MountingPowered trolley travel for efficient load positioning.
Technical Specifications
| Model | Capacity | Lift | Lifting Speed | Hoist Power | Motor Speed | Hoist Motor | Voltage | Frequency | Trolley Power | Travel Speed | I-Beam Width |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HHBD0.5-01 | 0.5 t | 3 / 9 m | 7.8 m/min | 0.75 kW | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.2 kW | 14 m/min | 70–130 mm |
| HHBD01-01 | 1 t | 3 / 9 m | 6.8 m/min | 1.5 kW | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.4 kW | 10 / 20 m/min | 80–160 mm |
| HHBD01-02 | 1 t | 3 / 9 m | 3.9 m/min | 0.75 kW | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.4 kW | 10 / 20 m/min | 80–160 mm |
| HHBD02-01 | 2 t | 3 / 9 m | 6.8 m/min | 3.0 kW | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.4 kW | 10 / 20 m/min | 82–178 mm |
| HHBD02-02 | 2 t | 3 / 9 m | 3.4 m/min | 1.5 kW | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.4 kW | 10 / 20 m/min | 82–178 mm |
| HHBD03-01 | 3 t | 3 / 9 m | 5.4 m/min | 3.0 kW | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.4 kW | 10 / 20 m/min | 100–180 mm |
| HHBD03-02 | 3 t | 3 / 9 m | 3.4 m/min | 3.0 kW | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.4 kW | 10 / 20 m/min | 100–180 mm |
| HHBD03-03 | 3 t | 3 / 9 m | 2.2 m/min | 1.5 kW | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.4 kW | 10 / 20 m/min | 100–180 mm |
| HHBD05-02 | 5 t | 3 / 9 m | 2.7 m/min | 3.0 kW | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.75 kW | 10 / 20 m/min | 110–180 mm |
Dimensions
Electric Chain Hoist with Motorized Trolley – Dimensional Drawing
| Model | Capacity | H | A | B | D | E | I | J | P | K | L | N | R | T | Chain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HHBD0.5-01 | 0.5 t | 630 | 460 | 230 | 280 | 160 | Ø31 | 100 | 162 | Ø32 | 25 | 17 | 142 | 150 | Ø6.3 |
| HHBD01-01 | 1 t | 650 | 520 | 260 | 300 | 176 | Ø31 | 111 | 206 | Ø40 | 31 | 24 | 142 | 231 | Ø7.1 |
| HHBD01-02 | 1 t | 640 | 460 | 230 | 280 | 205 | Ø31 | 111 | 206 | Ø40 | 31 | 24 | 142 | 230 | Ø6.3 |
| HHBD02-01 | 2 t | 770 | 620 | 310 | 430 | 265 | Ø36 | 127 | 237 | Ø49 | 35 | 30 | 142 | 231 | Ø10.0 |
| HHBD02-02 | 2 t | 740 | 520 | 260 | 300 | 230 | Ø36 | 127 | 237 | Ø49 | 35 | 30 | 142 | 231 | Ø7.1 |
| HHBD03-01 | 3 t | 840 | 620 | 310 | 430 | 265 | Ø43 | 140 | 265 | Ø59 | 42 | 35 | 142 | 231 | Ø11.2 |
| HHBD03-02 | 3 t | 940 | 620 | 310 | 430 | 320 | Ø43 | 140 | 265 | Ø59 | 42 | 35 | 142 | 231 | Ø10.0 |
| HHBD03-03 | 3 t | 920 | 520 | 260 | 350 | 280 | Ø43 | 140 | 265 | Ø59 | 42 | 35 | 142 | 231 | Ø7.1 |
| HHBD05-02 | 5 t | 1015 | 620 | 310 | 430 | 325 | Ø54 | 156 | 296 | Ø60 | 45 | 43 | 142 | 231 | Ø11.2 |
Dimensions: All dimensional values are in millimeters unless otherwise stated. Confirm the required capacity, lifting speed, voltage, lifting height and mounting or beam dimensions before ordering.
Typical Applications
Suitable for workshops, warehouses, production lines, assembly stations and general industrial material-handling operations.
