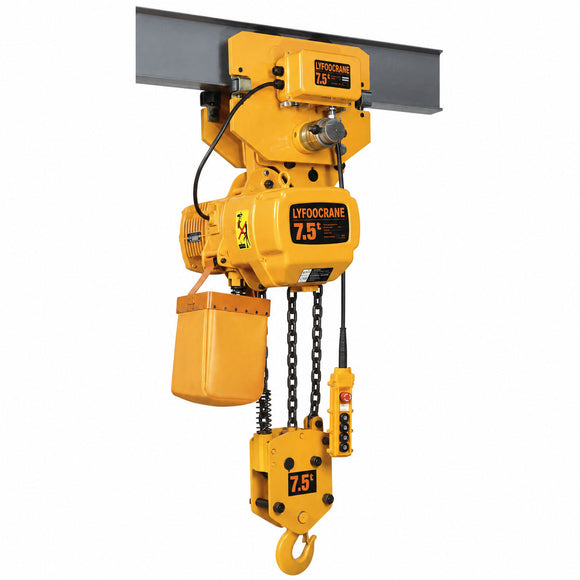

7.5-Ton Electric Chain Hoist with Motorized Trolley
Designed for demanding industrial lifting and powered horizontal travel on an I-beam, this 7.5-ton electric chain hoist combines electric lifting, motorized trolley movement and pendant control in one integrated unit. Its 1.9 m/min lifting speed provides steady, controlled movement for heavier loads.
7.5-Ton Electric Chain Hoist with Motorized Trolley
7.5-Ton Lifting CapacityBuilt for industrial material-handling applications requiring increased load capacity.
1.9 m/min Lifting SpeedProvides steady vertical movement for controlled handling and positioning of heavier loads.
Motorized TrolleyPowered horizontal travel enables efficient movement along compatible I-beams.
Product Overview
| Model | Rated Capacity | Lifting Height | Lifting Speed | Hoist Motor | Trolley Motor | Load Chain | Overall Height (H) |
|---|---|---|---|---|---|---|---|
| HHBD7.5-03 | 7.5 t | 3 / 9 m | 1.9 m/min | 3.0 kW | 0.75 kW | Ø11.2 mm | 1200 mm |
Technical Specifications
| Model | Capacity | Lift | Lifting Speed | Hoist Power | Hoist Motor Speed | Hoist Motor | Voltage | Frequency | Trolley Power | Trolley Motor Speed | Travel Speed | Trolley Motor | Trolley Voltage | Frequency | I-Beam Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HHBD7.5-03 | 7.5 t | 3 / 9 m | 1.9 m/min | 3.0 kW | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.75 kW | 1440 r/min | 10 m/min | 3-phase | 220–440 V | 50/60 Hz | 120–180 mm |
Dimensions
HHBD7.5-03 Dimensional Drawing
| Model | H | A | B | D | E | I | J | K | L | M | N | W | U | R | T | Chain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HHBD7.5-03 | 1200 | 620 | 310 | 500 | 320 | Ø70 | Ø37 | Ø90 | 65 | 85 | 50 | 366 | 191 | 142 | 231 | Ø11.2 |
Dimensions: All dimensional values are in millimeters unless otherwise stated. Confirm the required voltage, lifting height, travel speed and I-beam flange width before ordering.
Typical Applications
Suitable for heavy-duty workshops, warehouses, assembly areas, manufacturing facilities and general industrial material-handling operations requiring both vertical lifting and powered beam travel.
