3-Ton Electric Chain Hoist with Motorized Trolley
Designed for lifting and powered horizontal travel on an I-beam, this 3-ton electric chain hoist is available in two configurations. The high-speed single-chain model supports faster material handling, while the low-speed double-chain model provides steadier load positioning. Both versions combine electric lifting, motorized trolley travel and pendant control in one compact unit.

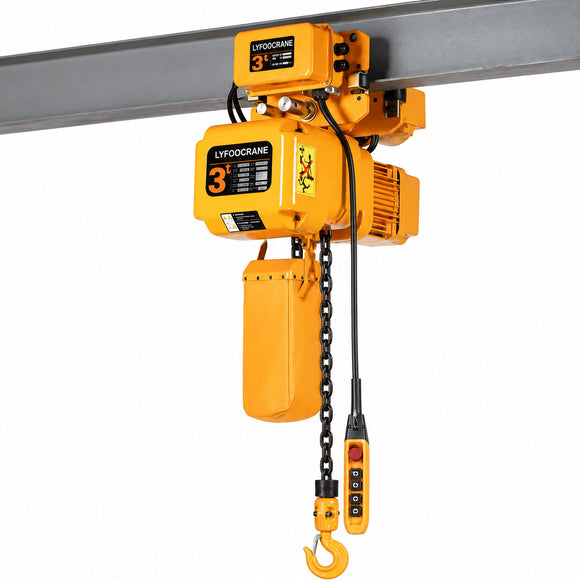

High Speed (Single Load Chain)
Low Speed (Double Load Chains)
Two Lifting-Speed OptionsSelect 5.4 m/min for faster handling or 2.8 m/min for more controlled lifting.
Motorized TrolleyPowered horizontal travel enables efficient load movement and positioning along a compatible I-beam.
Flexible Lift and Power SupplyAvailable with a 3 m or 9 m lifting height and a three-phase 220–440 V, 50/60 Hz power supply.
Model Comparison
| Model | Configuration | Rated Capacity | Lifting Height | Lifting Speed | Hoist Motor | Load Chain | Overall Height (H) |
|---|---|---|---|---|---|---|---|
| HHBD03SK-01 | High Speed / Single Chain | 3 t | 3 / 9 m | 5.4 m/min | 3.0 kW | Ø11.2 mm | 650 mm |
| HHBD03SK-02 | Low Speed / Double Chain | 3 t | 3 / 9 m | 2.8 m/min | 3.0 kW | Ø10.0 mm | 620 mm |
Technical Specifications
| Model | Capacity | Lift | Lifting Speed | Hoist Power | Hoist Motor Speed | Hoist Motor | Voltage | Frequency | Trolley Power | Trolley Motor Speed | Travel Speed | Trolley Motor | Trolley Voltage | Frequency | I-Beam Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HHBD03SK-01 | 3 t | 3 / 9 m | 5.4 m/min | 3.0 kW | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.4 kW | 1440 r/min | 10 / 12 m/min | 3-phase | 220–440 V | 50/60 Hz | 100–180 mm |
| HHBD03SK-02 | 3 t | 3 / 9 m | 2.8 m/min | 3.0 kW | 1440 r/min | 3-phase | 220–440 V | 50/60 Hz | 0.4 kW | 1440 r/min | 10 / 20 m/min | 3-phase | 220 / 440 V | 50/60 Hz | 100–180 mm |
Dimensions
HHBD03SK-01 (High Speed / Single Load Chain)
HHBD03SK-02 (Low Speed / Double Load Chains)
| Model | H | A | B | D | J | K | L | N | R | T | P | Q | Chain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HHBD03SK-01 | 650 | 785 | 395 | 465 | Ø43 | Ø59 | 42 | 35 | 142 | 231 | 265 | 140 | Ø11.2 |
| HHBD03SK-02 | 620 | 645 | 330 | 320 | Ø43 | Ø59 | 42 | 35 | 142 | 231 | 265 | 140 | Ø10.0 |
Dimensions: All dimensional values are in millimeters unless otherwise stated. Confirm the required voltage, lifting height, travel speed and I-beam flange width before ordering.
Typical Applications
Suitable for workshops, warehouses, production lines, assembly areas and general material-handling operations that require both vertical lifting and powered beam travel.
