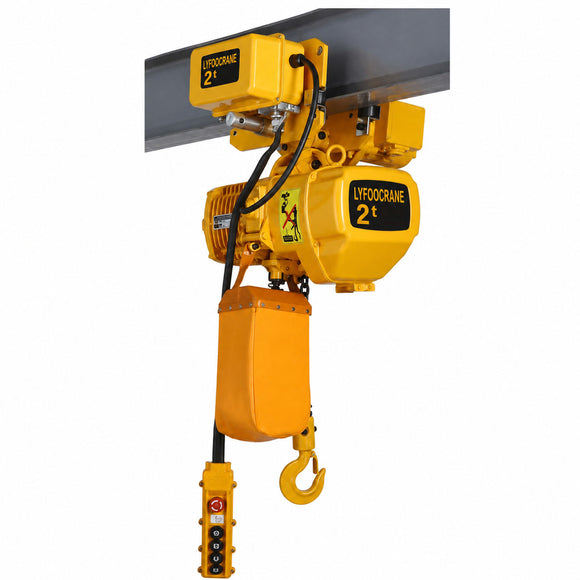

Electrical Chain Hoist 2T

2-Ton Electric Chain Hoist with Motorized Trolley

Designed for lifting and horizontal load travel on an I-beam, this compact electric chain hoist is available in two configurations. Choose the high-speed model for faster lifting or the standard-speed model for improved positioning control. Both versions combine a 2-ton rated capacity, motorized trolley travel and pendant control in one integrated lifting solution.

Hight Speed (Single Load Chain)
Low Speed (Double Load Chains)
Two Lifting-Speed OptionsSelect 5.4 m/min for faster handling or 3.6 m/min for more controlled lifting.
Motorized TrolleyProvides powered horizontal travel along compatible I-beams for efficient load positioning.
Flexible Lift and Power SupplyAvailable with a 3 m or 9 m lifting height and a three-phase 220–440 V, 50/60 Hz power supply.

Model Comparison

Model Configuration Rated Capacity Lifting Height Lifting Speed Hoist Motor Load Chain Overall Height (H)
HHBD02SK-01 High-Speed 2 t 3 / 9 m 5.4 m/min 3.0 kW Ø10.0 mm 500 mm
HHBD02SK-02 Low-Speed 2 t 3 / 9 m 3.6 m/min 1.5 kW Ø8.0 mm 600 mm

Technical Specifications

Model Capacity Lift Lifting Speed Hoist Power Hoist Motor Speed Hoist Motor Voltage Frequency Trolley Power Trolley Motor Speed Travel Speed Trolley Motor Trolley Voltage Frequency I-Beam Width
HHBD02SK-01 2 t 3 / 9 m 5.4 m/min 3.0 kW 1440 r/min 3-phase 220–440 V 50/60 Hz 0.4 kW 1440 r/min 10 / 12 m/min 3-phase 220–440 V 50/60 Hz 82–178 mm
HHBD02SK-02 2 t 3 / 9 m 3.6 m/min 1.5 kW 1440 r/min 3-phase 220–440 V 50/60 Hz 0.4 kW 1440 r/min 10 / 20 m/min 3-phase 220 / 440 V 50/60 Hz 82–178 mm

Dimensions

HHBD02SK-01 (High-Speed)
HHBD02SK-02 (Low-Speed)
Model H A B D J E K L N R T P Q Chain
HHBD02SK-01 500 645 330 320 Ø36 — Ø49 35 30 142 231 237 127 Ø10.0
HHBD02SK-02 600 595 320 300 — 245 Ø49 35 30 Not specified 231 237 127 Ø8.0

Dimensions: All values are in millimeters unless otherwise stated. “—” indicates that the corresponding dimension is not used for that model. Confirm the required voltage, lifting height, travel speed and I-beam flange width before ordering.

Typical Applications

Suitable for workshops, warehouses, production lines, assembly areas and general material-handling operations where both vertical lifting and powered beam travel are required.
