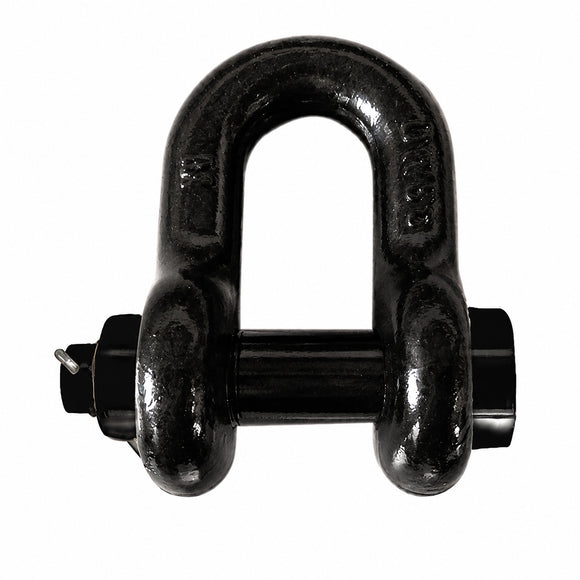

DX Heavy-Duty Shackle
Product Overview
The DX Heavy-Duty Shackle is designed for heavy lifting, rigging and load-connection applications. The series is available with working load limits from 3 to 80 metric tons, providing multiple sizes for different lifting requirements.
Dimensions and Technical Specifications
| Item No. | Working Load Limit (t) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| SL-S1015-3 | 3 | 42 | 30 | 27 | 60 | 78 | 2.2 |
| SL-S1015-5 | 5 | 58 | 38 | 34 | 76 | 104 | 4.3 |
| SL-S1015-8 | 8 | 61 | 40 | 35.5 | 96 | 109 | 6.25 |
| SL-S1015-10 | 10 | 66 | 45 | 39 | 89 | 124 | 7.95 |
| SL-S1015-15 | 15 | 70 | 50 | 46 | 100 | 159 | 10.3 |
| SL-S1015-20 | 20 | 79 | 55 | 51 | 112 | 174 | 15.7 |
| SL-S1015-25 | 25 | 88 | 60 | 61 | 122 | 177 | 23.6 |
| SL-S1015-32 | 32 | 100 | 70 | 66 | 138 | 215 | 33.5 |
| SL-S1015-40 | 40 | 110 | 80 | 75 | 158 | 246 | 49 |
| SL-S1015-50 | 50 | 130 | 90 | 76 | 158 | 268 | 57.7 |
| SL-S1015-60 | 60 | 130 | 95 | 82 | 178 | 310 | 74 |
| SL-S1015-80 | 80 | 124 | 100 | 94 | 178 | 289 | 82.2 |
