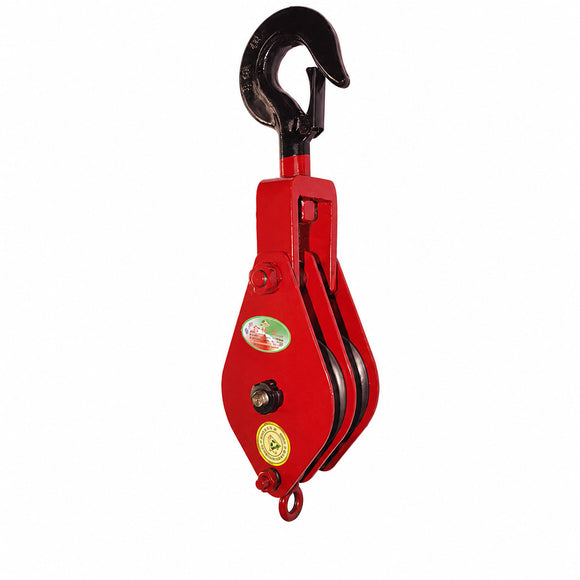

Double-Sheave Pulley Block with Hook
This double-sheave pulley block is designed for wire-rope lifting and pulling applications. Its two-sheave configuration provides efficient wire-rope routing, while the lower lifting hook offers a secure connection to the load.
Product Features
- The lifting hook is drop-forged from high-quality alloy steel and designed with a 3:1 safety factor.
- Available with cast-iron, cast-steel or hot-rolled steel sheaves.
- Sheave bearing options include composite wear-resistant bushings, solid bronze bushings, ball bearings and needle bearings.
- Additional working-load capacities can be manufactured to order.
Dimensions and Technical Specifications
| Item No. | WLL (t) |
Test Load (kN) |
Outside Dimensions (mm) | Wire Rope Diameter (mm) | Hook Opening Dimensions (mm) | Weight (kg) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| H | B | Lmax | Φ | Recommended | Max. | D | O | ||||
| SL-HQG2-1 | 1 | 16.00 | 375 | 98 | 87 | 12 | 6.2 | 7.7 | 37.5 | ≥27 | 3 |
| SL-HQG2-2 | 2 | 32.00 | 420 | 116 | 94.5 | 14 | 7.7 | 11 | 45 | ≥32 | 6 |
| SL-HQG2-3.2 | 3.2 | 51.20 | 590 | 152 | 118 | 22 | 11 | 14 | 50 | ≥37 | 10.18 |
| SL-HQG2-5 | 5 | 80.00 | 625 | 176 | 136 | 24 | 12.5 | 15.5 | 60 | ≥42 | 17.5 |
| SL-HQG2-8 | 8 | 128.0 | 820 | 212 | 165 | 24 | 15.5 | 18.5 | 75 | ≥56 | 40 |
| SL-HQG2-10 | 10 | 160.0 | 845 | 236 | 180 | 32 | 17 | 20 | 85 | ≥61 | 47.5 |
| SL-HQG2-16 | 16 | 224.0 | 1150 | 316 | 200 | 45 | 23 | 24.5 | 106 | ≥81 | 75 |
| SL-HQG2-20 | 20 | 280.0 | 1195 | 364 | 230 | 48 | 26 | 28 | 118 | ≥90 | 125 |
| SL-HQG2-32 | 32 | 512.0 | 1480 | 580 | 265 | 60 | 31 | 35 | 140 | ≥106 | 300 |
WLL = Working Load Limit. All dimensions and technical values are based on the source product data.
