LYFOOCRANE CUSTOM ALUMINUM GANTRIES

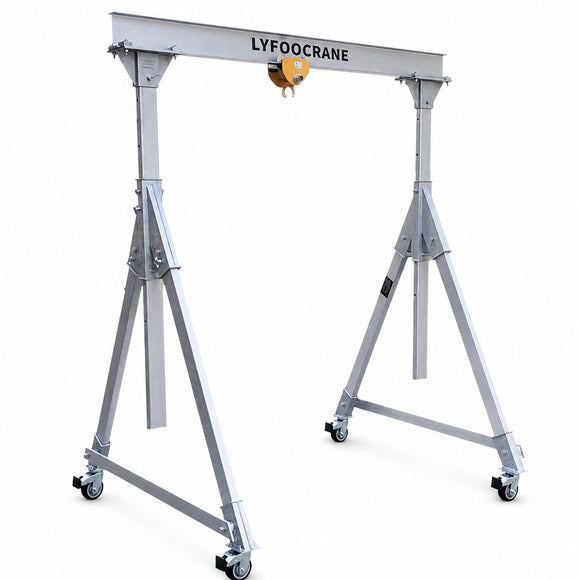

Custom Adjustable Aluminum Gantry Crane, 0.5–2 Tonnes
A lightweight adjustable lifting frame for maintenance, clean facilities and project sites requiring configurable span and height.
Flexible Lifting for Changing Work Areas
A lightweight adjustable lifting frame for maintenance, clean facilities and project sites requiring configurable span and height. Each system is configured around the working envelope, floor conditions and selected hoist.
Configure the frame for different equipment and access points.
Lower component weight than comparable steel frames.
Positive mechanical retention at approved adjustment positions.
Reposition the unloaded frame on suitable floors.
Reference Specifications
| Capacity | Overall Span Options | Clear Span Options | Overall Height Options | Clear Height Range |
|---|---|---|---|---|
| 0.5 t | 2,000 / 3,000 / 4,000 mm | 1,600 / 2,600 / 3,600 mm | 2,000–4,000 mm | 1,588–3,588 mm |
| 1 t | 2,000 / 3,000 / 4,000 mm | 1,600 / 2,600 / 3,600 mm | 2,000–4,000 mm | 1,588–3,588 mm |
| 2 t | 2,000 / 3,000 / 4,000 mm | 1,600 / 2,600 / 3,600 mm | 2,000–4,000 mm | 1,457–3,457 mm |
Typical Applications
Cleanrooms · laboratories · nuclear maintenance · workshops · equipment servicing
Engineering and Safety
One 1-ton source row lists an overall span of “2000 m”; it has been corrected to 2,000 mm based on the matching table pattern. Capacity varies with the approved span and height configuration. Height or span adjustment must be performed without a suspended load.
Confirm the rated capacity for the actual span and height, lock all pins and casters, verify floor bearing capacity and keep personnel clear of suspended loads. Do not lift people. Use only compatible hoists, trolleys and rigging hardware.
Configure a LYFOOCRANE Lifting Frame
Provide the load, required clear span, under-beam height, adjustment range, floor conditions, hoist type, mobility requirement and available setup space.
