LYFOOCRANE COMPACT MOTION MODULES

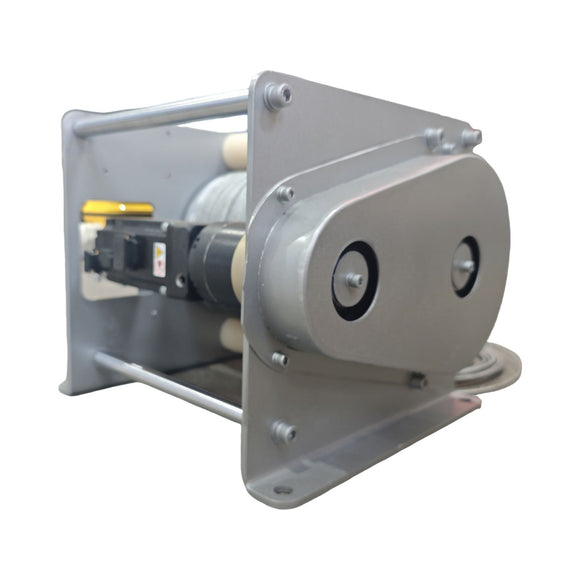

Compact Parallel Servo Winch with Controlled Torque Output
A compact 300 kg-class winch module combining servo control, planetary reduction and single-layer guided winding.
High Reduction in a Small Installation Envelope
The motor and drum are arranged in a compact parallel layout. A planetary reducer provides high reduction within a short mechanical package, while the grooved drum and pressure roller support consistent single-layer rope winding.
Programmable operating torque and speed.
Compact, high-ratio transmission.
Short footprint for machine integration.
Groove and pressure-roller rope control.
300 kg Reference Model
| Rated Capacity | Motor | Output Speed | Rope Speed | Rope | Travel | Weight |
|---|---|---|---|---|---|---|
| 300 kg | 0.4 kW | 11 rpm | 0.9 m/min | Ø6 mm | 800 mm | 19 kg |
| Length | Width | Height |
|---|---|---|
| 273 mm | 320 mm | 240 mm |
Where It Fits
Precision handling · compact test rigs · low-noise indoor machinery · controlled pulling and positioning
“Constant torque” describes motor or drive output, not guaranteed constant rope tension. Line force varies with drum radius and mechanical losses unless closed-loop force feedback is added.
Configure a Compact Motion Module
Send LYFOOCRANE the load, stroke, speed, torque profile, space envelope and control interface.
