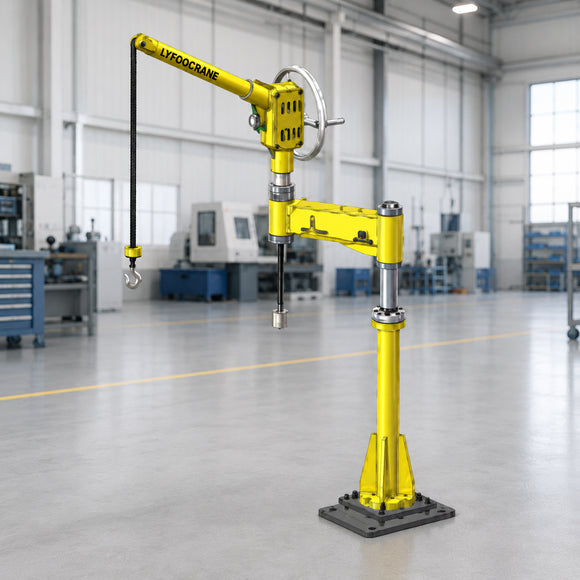

Compact 360° Workstation Lifting System, 100–200 kg
A configurable jib-style lifting system for handling components in confined workstations, laboratories and precision assembly areas.
Flexible Lifting for Changing Work Areas
A configurable jib-style lifting system for handling components in confined workstations, laboratories and precision assembly areas. Each system is configured around the working envelope, floor conditions and selected hoist.
Access machinery and benches where bridge cranes cannot fit.
Broad working coverage around the mounting point.
Choose direct reach or folding-arm flexibility.
Bench, floor, mobile base or equipment integration.
Reference Specifications
| Configuration | Gross Weight | Maximum Outreach | Height Adjustment | Rated Capacity |
|---|---|---|---|---|
| Desk-Mounted Single Arm | 31 kg | 540 mm | — | 100 kg |
| Column-Mounted Single Arm | 67 kg | 540 mm | 200 mm | 150 kg |
| Desk-Mounted Articulating Arm | 51 kg | 900 mm | 100 mm | 100 kg |
| Column-Mounted Articulating Arm | 75 kg | 900 mm | 200 mm | 200 kg |
Typical Applications
CNC loading · mold changes · assembly benches · laboratory instruments · prototype development
Engineering and Safety
No positioning tolerance or test method is provided, so “millimeter-level positioning” is not presented as a specification. Rotation clearance, mounting strength, overturning stability, hoist compatibility and end stops must be engineered for the chosen configuration.
Confirm the rated capacity for the actual span and height, lock all pins and casters, verify floor bearing capacity and keep personnel clear of suspended loads. Do not lift people. Use only compatible hoists, trolleys and rigging hardware.
Configure a LYFOOCRANE Lifting Frame
Provide the load, required clear span, under-beam height, adjustment range, floor conditions, hoist type, mobility requirement and available setup space.
