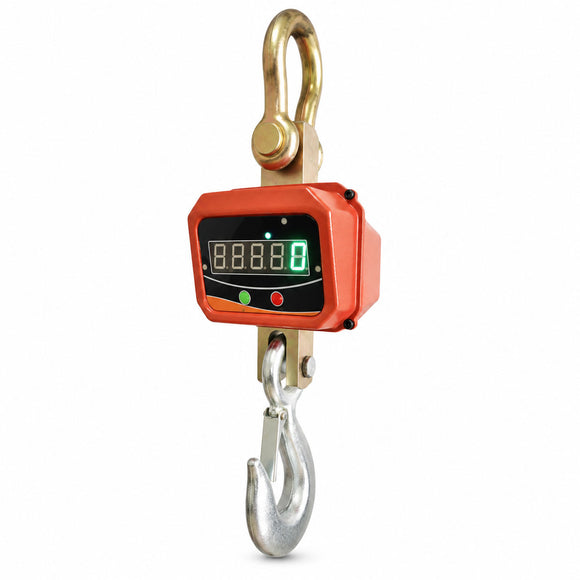

BY Industrial Crane Scale (3T~30T)

Accuracy Class	Class III, GB/T 11883-2002
Operating Time per Charge	Approximately 60 hours
Safe Overload	150% F.S.
Ultimate Overload	300% F.S.
Operating Temperature	-25°C to +50°C
Relative Humidity	≤90% RH
Display Options	1.2-inch LED digital display or 1.8-inch LED display
Stabilization Time	<5 seconds
Remote-Control Range	10–15 m

Capacity	Division	Minimum Load	Overload Coefficient	Display	Battery	Remote Control	Charger	Housing
3 t	0.5 kg	20 kg	5d	1.2-inch red and green dual-color display	7.4 V lithium battery	Infrared	8.4 V / 1 A, 5.5 × 2.5 mm socket	Spray-coated aluminum alloy
5 t	1 kg	40 kg	5d	1.2-inch red and green dual-color display	7.4 V lithium battery	Infrared	8.4 V / 1 A, 5.5 × 2.5 mm socket	Spray-coated aluminum alloy
10 t	2 kg	80 kg	5d	1.2-inch red and green dual-color display	7.4 V lithium battery	Infrared	8.4 V / 1 A, 5.5 × 2.5 mm socket	Spray-coated aluminum alloy
15 t	5 kg	100 kg	5d	1.2-inch red and green dual-color display	7.4 V lithium battery	Infrared	8.4 V / 1 A, 5.5 × 2.5 mm socket	Spray-coated aluminum alloy
20 t	5 kg	200 kg	5d	1.2-inch red and green dual-color display	7.4 V lithium battery	Infrared	8.4 V / 1 A, 5.5 × 2.5 mm socket	Spray-coated aluminum alloy
30 t	5 kg	200 kg	5d	1.2-inch red and green dual-color display	7.4 V lithium battery	Infrared	8.4 V / 1 A, 5.5 × 2.5 mm socket	Spray-coated aluminum alloy

Capacity	A	B	C	D	E
3 t	370 mm	143 mm	49 mm	230 mm	160 mm
5 t	680 mm	130 mm	53 mm	230 mm	160 mm
10 t	720 mm	123 mm	62 mm	230 mm	160 mm
15 t	880 mm	96 mm	65 mm	230 mm	160 mm
20 t	970 mm	125 mm	80 mm	230 mm	160 mm
30 t	1090 mm	14 mm	105 mm	230 mm	160 mm
