Deep Magnetic Penetration
The optimized magnetic circuit can penetrate multiple air gaps between steel pieces, making the system suitable for bundled and loosely arranged profiles.
IMAGE POSITION 1 — MAIN PRODUCT / APPLICATION IMAGE
MW38 Normal-Temperature Lifting Electromagnet
The MW38 series is engineered for lifting bundled or loosely grouped long steel products, including reinforcing bar, small-diameter round bar, flat bar, angle steel and other structural sections. Its specialized magnetic-circuit design provides deep magnetic penetration and reliable attraction across multiple air gaps, helping stabilize flexible loads that are difficult to handle with conventional lifting magnets.
DC 220 V Rated Voltage
TD 60% Duty Cycle

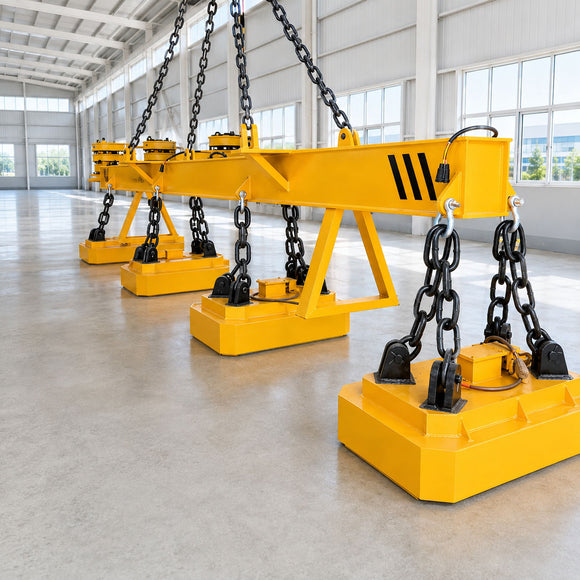

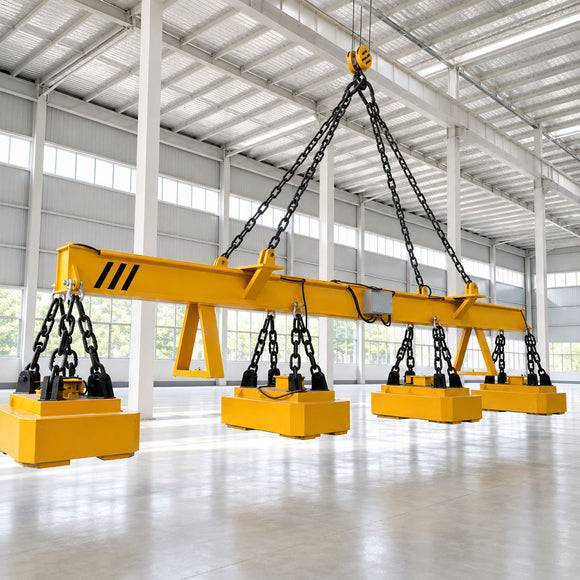

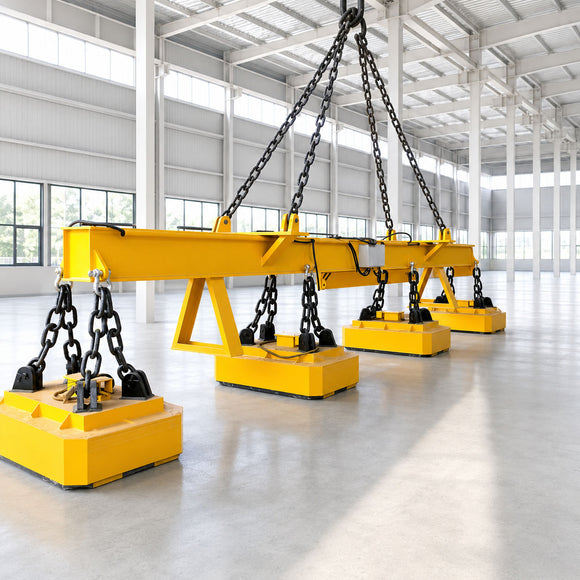

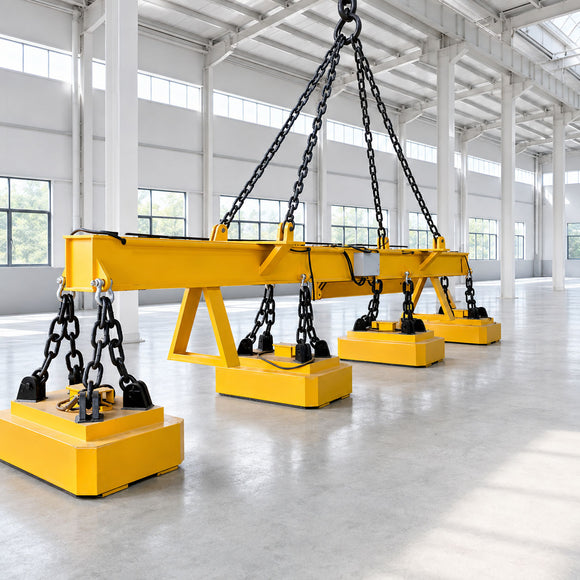

Multi-Magnet System Spreader-Beam Operation
Key Features
Efficient Heat Dissipation
The structural design supports effective heat dissipation during normal-duty lifting operations and helps maintain stable magnetic performance.
Improved Load Stability
The MW38 series helps reduce excessive deflection and movement when handling long, flexible products such as small round bar and reinforcing bar.
Flexible Suspension Options
Because the magnets are commonly used in pairs or larger groups, two-point and four-point spreader-beam connections are available for different system layouts.
IMAGE POSITION 2 — OVERALL DIMENSION DRAWING
Technical Specifications
Normal-temperature series — rated voltage DC 220 V; duty cycle TD 60%.
| Model | Cold-State Power (kW) |
Cold-State Current (A) |
Overall Dimensions (mm) | Weight (kg) |
Bundled-Bar Handling Capacity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | Load Specification | Magnet Units | Bundles | ||||
| MW38-10095L/1 | 7.9 | 35.9 | 1000 | 950 | 1050 | 500 | 110 | 180 | 30 | 1510 | Bundle length: 12 m Bundle diameter: ≤ Φ400 mm Bundle weight: ≤ 3.5 t |
4 | 2 |
| MW38-14095L/1 | 10.9 | 49.5 | 1400 | 950 | 1100 | 600 | 110 | 180 | 35 | 2090 | Same group specification | 4 | 3 |
| MW38-17095L/1 | 13.2 | 60.0 | 1700 | 950 | 1150 | 700 | 110 | 180 | 40 | 2530 | Same group specification | 4 | 4 |
| MW38-110100L/1 | 8.9 | 40.5 | 1100 | 1000 | 1100 | 500 | 110 | 180 | 35 | 1920 | Bundle length: 9 m Bundle diameter: ≤ Φ400 mm Bundle weight: ≤ 4 t |
3 | 2 |
| MW38-140100L/1 | 10.5 | 47.7 | 1400 | 1000 | 1150 | 600 | 110 | 180 | 40 | 2390 | Same group specification | 3 | 3 |
| MW38-170100L/1 | 13.4 | 60.9 | 1700 | 1000 | 1150 | 700 | 125 | 200 | 45 | 2910 | Same group specification | 3 | 4 |
| MW38-110110L/1 | 9.1 | 41.4 | 1100 | 1100 | 1150 | 600 | 110 | 180 | 45 | 2350 | Confirm load specification before ordering | 2 | 2 |
| MW38-140110L/1 | 11.1 | 50.5 | 1400 | 1100 | 1200 | 600 | 125 | 200 | 50 | 3020 | Confirm load specification before ordering | 2 | 3 |
| MW38-170110L/1 | 13.5 | 61.4 | 1700 | 1100 | 1250 | 700 | 125 | 200 | 50 | 3630 | Confirm load specification before ordering | 2 | 4 |
Swipe or scroll horizontally to view the complete table on smaller screens. Dimensions A–G correspond to the overall dimension drawing.
Typical Applications
Designed for crane-assisted handling of long ferrous steel products in steel mills, stockyards, fabrication facilities and distribution operations.
Reinforcing Bar
Handling bundled or loosely grouped rebar during loading, unloading and stock transfer.
Round & Flat Bar
Moving small-diameter round bar and flat steel with improved load stability.
Structural Sections
Lifting angle steel and other long profiled products with multi-magnet systems.
IMAGE POSITION 3 — REBAR HANDLING
IMAGE POSITION 4 — STEEL-YARD OPERATION
IMAGE POSITION 5 — CRANE LIFTING SYSTEM
