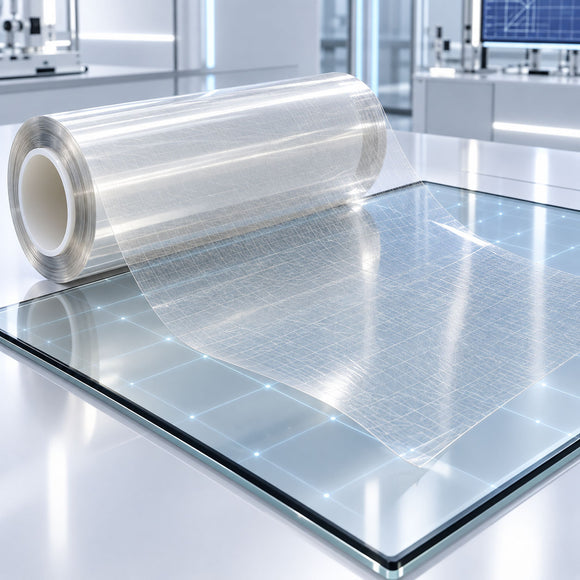

AgNWs Transparent Conductive Film
A flexible, transparent nano-silver conductive film for capacitive touch modules and large-format interactive display systems.
Product Features
- Low sheet resistance with high light transmission
- Flexible and suitable for large-area touch control
- Fine-pattern capability for precise touch grids
- Compatible with common OCA, silver paste and ACF materials
- Tested for high-temperature/high-humidity, xenon-light, thermal-shock and antistatic performance
Applications
Touch ModulesFlexible capacitive touch sensors.
Interactive DisplaysLarge-format interactive panels.
Smart TerminalsTouch-enabled commercial and educational devices.
Technical Specifications
| Sheet Resistance | Transmittance | Haze | Uniformity MD / TD |
|---|---|---|---|
| 9 Ω/sq | 84-85% | 2.6-2.8% | 0.5 / 0.5 Ω/sq |
| 25 Ω/sq | 89-90% | 1.8-2.0% | 1.0 / 1.0 Ω/sq |
| 50 Ω/sq | 90-91% | 1.5-1.7% | 1.5 / 1.5 Ω/sq |
Specifications are reference values from the supplied product document. Confirm the final specification and processing conditions before ordering or production use.
