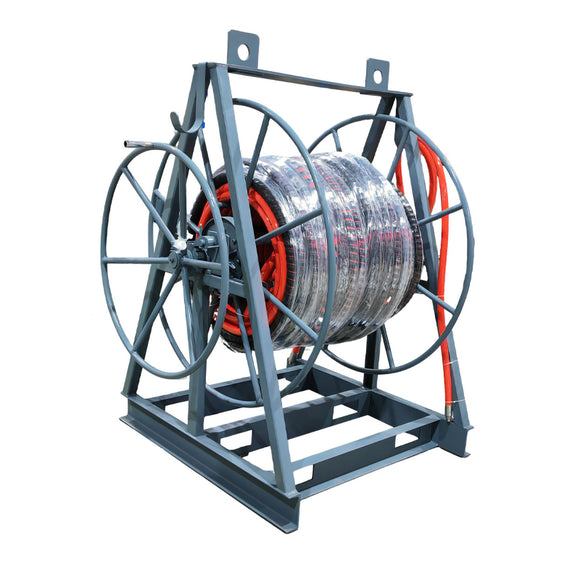

91 m Manual Marine Hydraulic Hose Reel
A hand-cranked supply-and-return hose reel for marine hydraulic oil service, with rotary fluid transfer, ratchet holding and corrosion-resistant construction.
Engineered for the Application
A hand-cranked supply-and-return hose reel for marine hydraulic oil service, with rotary fluid transfer, ratchet holding and corrosion-resistant construction. Final drum geometry, drive, controls and protection are configured around the actual cable, rope or hose system.
Separate pressure and return hoses.
Supports flow while the drum rotates.
Controls drum movement between operations.
Epoxy zinc-rich system specified at ≥200 μm.
Reference Specifications
| Hose Capacity | Pressure Hose | Return Hose | Drive | Coating | Dimensions |
|---|---|---|---|---|---|
| 91 m / 300 ft | 19.05 mm / 3/4 in | 25.4 mm / 1 in | 1:1 hand crank | Epoxy zinc-rich, ≥200 μm | 1,715 × 1,260 × 1,793 mm |
Typical Applications
Offshore hydraulic maintenance · vessel oil transfer · mobile hydraulic service units · remote worksites
Engineering Note
A manually powered reel is not automatically explosion-proof. Suitability for a hazardous area depends on all materials, static bonding, fluid, accessories and site classification. The source’s “307 m/min” manual speed is implausible and has been omitted pending verification.
Final selection must also define duty cycle, ambient conditions, guarding, emergency stopping, anchorage and applicable local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Project Configuration
Send the line type and diameter, working length, required pull, speed, duty cycle, power supply, control interface, environment and installation drawing.
