LYFOOCRANE HIGH-CAPACITY MOTION SYSTEMS

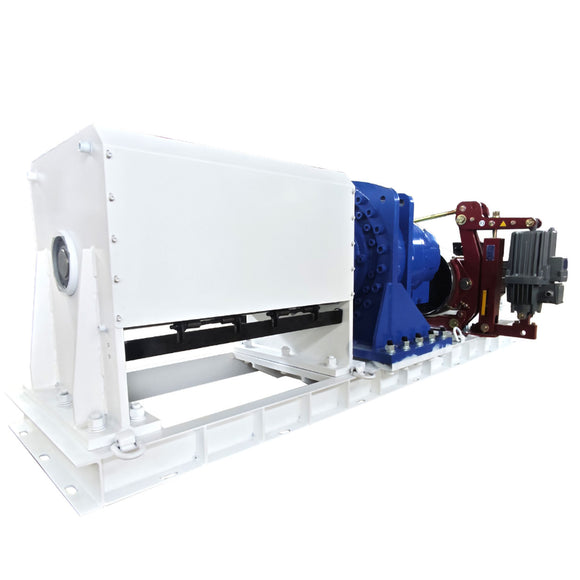

8,000 kg Servo Winch with Absolute Position Feedback
A high-power, single-layer drum winch for fast controlled pulling, tension-regulated processes and automated test systems.
Closed-Loop Position and Tension Capability
A 112 kW servo drive, planetary reducer and absolute encoder create a platform for high-speed motion with repeatable position feedback. The single-layer drum keeps the effective winding radius comparatively stable. A hydraulic drum brake adds an independent holding element when specified as part of the complete control architecture.
Retained position reference after power cycles.
More consistent rope geometry.
Compact high-torque transmission.
Project-engineered load holding.
Published Reference Specifications
| Capacity | Servo Motor | Motor Speed | Drum Speed | Average Rope Speed | Wire Rope | Winding |
|---|---|---|---|---|---|---|
| 8,000 kg | 112 kW | 1,500 rpm | 30 rpm | 37.7 m/min | 24 mm × 30 m | Single layer |
| Length | Width | Height |
|---|---|---|
| 2,962 mm | 1,118 mm | 870 mm |
Control and Safety Requirements
Constant torque and constant line tension are not interchangeable: tension regulation requires a calibrated load sensor and a closed control loop. At the published speed and capacity, the installation needs engineered guarding, overspeed protection, redundant limits, brake monitoring, emergency stopping and verified anchorage. Not for personnel lifting unless separately certified.
Engineer the Complete Motion Package
Tell LYFOOCRANE the line pull versus speed, travel, duty, control mode, load-cell signal, stopping requirement and governing standard.
