LYFOOCRANE DUAL-ROPE MANUAL WINCHES

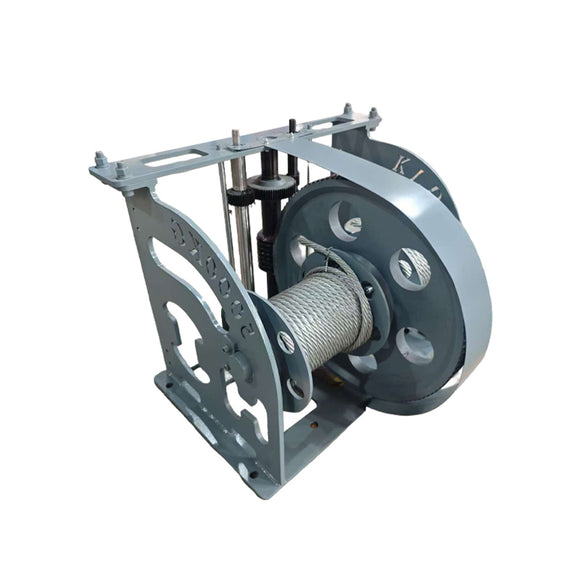

5,000 kg Dual-Speed, Dual-Rope Hand Winch
A double-drum manual winch with separate fast and slow inputs for paired-line pulling, lifting and equipment positioning.
Designed Around the Working Duty
A double-drum manual winch with separate fast and slow inputs for paired-line pulling, lifting and equipment positioning. Final gearing, drum, braking, controls and protection are configured for the project.
Fast retrieval and low-speed loaded operation.
Mechanically coordinated rope take-up.
Manual stopping and holding function.
Horizontal or vertical project layouts.
Reference Specifications
| Rated Capacity | Gear Ratios | Wire Rope | Drum Capacity | Net Weight | Dimensions |
|---|---|---|---|---|---|
| 5,000 kg | 240:1 / 480:1 | 14 mm | 11 m | 280 kg | 908 × 714 × 765 mm |
Typical Applications
Industrial positioning · test fixtures · paired pulling points · maintenance lifting · off-grid work
Engineering Note
A millimeter-level synchronization tolerance has not been defined or validated for this reference configuration. Equal drum rotation is not proof of equal rope travel. Any power-tool drive must have a compatible torque limit, retention method and operating procedure.
Final selection must define line pull by drum layer, rope specification, duty cycle, brake holding load, anchorage, corrosion system, guarding and applicable marine or local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Configuration
Provide the operating purpose, required line pull, rope travel and diameter, speed, duty cycle, power or hydraulic supply, installation drawing and environment.
