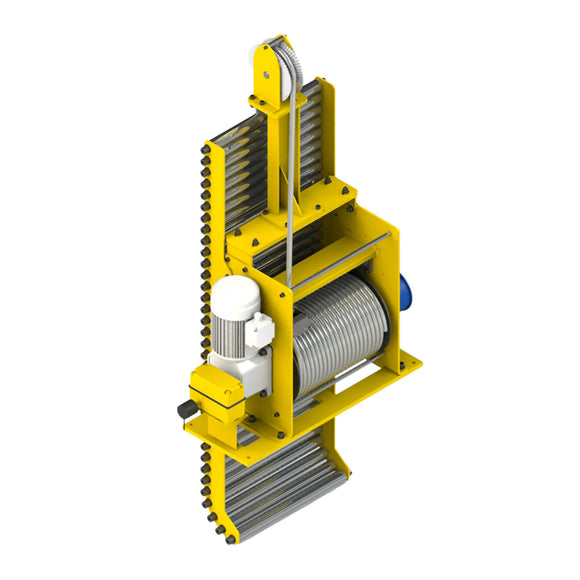

500 kg Hydropower Cable Winch with Encoder and 12-Circuit Slip Ring
A guided cable reel for dam, tunnel and underwater-monitoring installations requiring controlled cable movement and continuous electrical transmission.
Engineered for the Application
A guided cable reel for dam, tunnel and underwater-monitoring installations requiring controlled cable movement and continuous electrical transmission. Final drum geometry, drive, controls and protection are configured around the actual cable, rope or hose system.
Speed and rotational-position feedback.
Project-selected power and signal paths.
Orderly cable distribution across the drum.
Reduced jacket contact stress at the entry path.
Reference Specifications
| Rated Load | Motor | Cable Speed | Output Torque | Gear Ratio | Output Speed | Cable | Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|
| 500 kg | 0.4 kW | 2.5–2.9 m/min | 950 N·m | 210:1 | 3.3 rpm | 14.7 ± 1 mm × 30 m | 240 kg | 976 × 976 × 1,835 mm |
Typical Applications
Hydropower gates · underwater inspection · dam monitoring · diversion tunnels · plant automation
Engineering Note
The source mixes IP55, IP65/IP67 and optional certification claims. Protection and certification apply only when documented for the delivered assembly. Encoder rotation alone does not equal true cable length unless the controller compensates for effective drum diameter and layer buildup.
Final selection must also define duty cycle, ambient conditions, guarding, emergency stopping, anchorage and applicable local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Project Configuration
Send the line type and diameter, working length, required pull, speed, duty cycle, power supply, control interface, environment and installation drawing.
