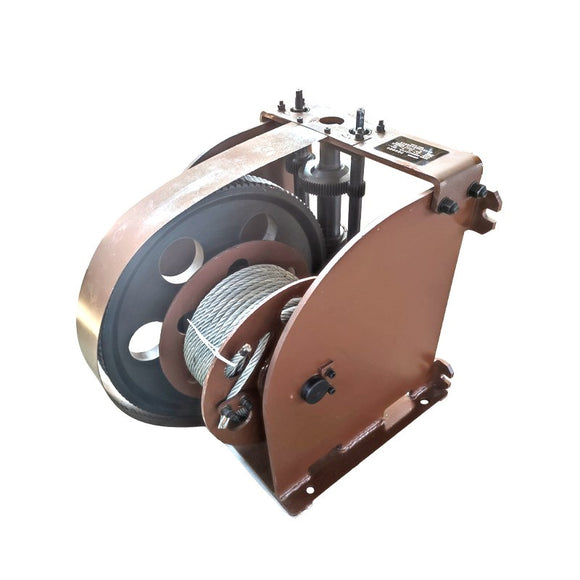

5,000 kg Dual-Speed Brake Hand Winch with Four-Way Rope Exit
A configurable worm-geared manual winch for controlled lifting, pulling and positioning where multiple rope directions or mounting orientations are required.
Designed Around the Working Duty
A configurable worm-geared manual winch for controlled lifting, pulling and positioning where multiple rope directions or mounting orientations are required. Final gearing, drum, braking, controls and protection are configured for the project.
Slow loaded travel and fast unloaded retrieval.
Up, down, front or rear arrangement.
Horizontal or vertical installation.
Controlled stopping and holding.
Reference Specifications
| Rated Capacity | Gear Ratios | Wire Rope | Drum Capacity | Machine Weight | Dimensions |
|---|---|---|---|---|---|
| 5,000 kg | 240:1 / 480:1 | 18 mm | 70 m | 240 kg | 620 × 714 × 765 mm |
Typical Applications
Floating structures · off-grid construction · equipment positioning · recovery work · industrial rigging
Engineering Note
Fast and slow ratio order varies between available model data, so gear selection must be confirmed. Worm gearing may resist back-driving but is not a certified substitute for the brake. A connected power tool requires controlled speed, torque limitation and positive retention.
Final selection must define line pull by drum layer, rope specification, duty cycle, brake holding load, anchorage, corrosion system, guarding and applicable marine or local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Configuration
Provide the operating purpose, required line pull, rope travel and diameter, speed, duty cycle, power or hydraulic supply, installation drawing and environment.
